Bolt tightening procedure for cylinder head cover - AR01.20-P-5014-03AMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156
MODIFICATION NOTES
| 21.6.10 | Value modified: Bolt, cylinder head cover to cylinder head | *BA01.30-P-1004-01U |
CYLINDER HEAD
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA01.30-P-1004-01U | Bolt, cylinder head cover to cylinder head | M6 | Nm | 8.5 |

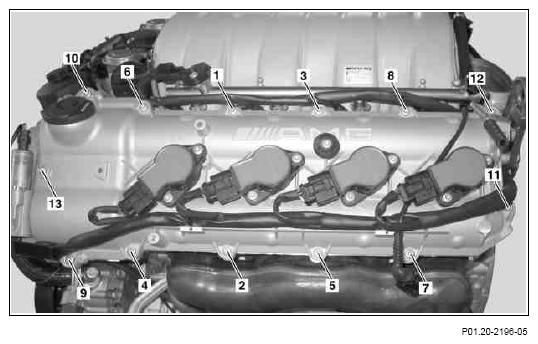

Right cylinder head cover
Tighten cylinder head cover bolts in the numerical sequence.
- Tighten bolts (1 to 13)

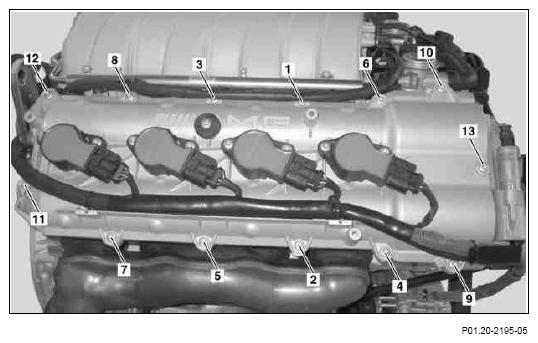

Left cylinder head cover
Tighten cylinder head cover bolts in the numerical sequence.
- Tighten bolts (1 to 13)
