Remove/install ignition coils - AR15.12-P-2003CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
MODIFICATION NOTES
| 6.8.09 | Value changed: screw/bolt, ignition coil to cylinder head cover | BA15.10-P-1001-04B | |
| 21.8.12 | Ignition coil bolt to the cylinder head cover | BA15.10-P-1001-04B |

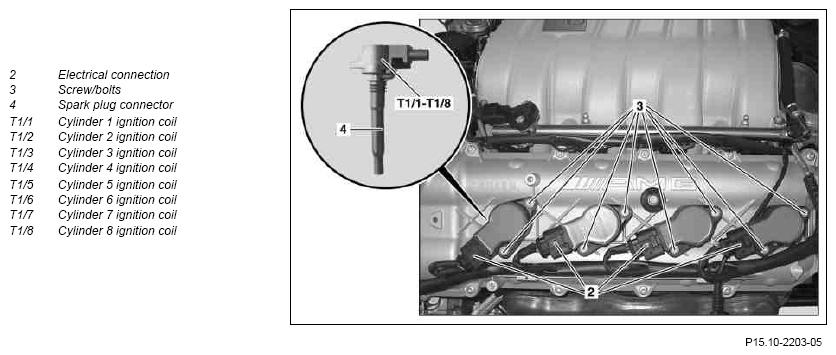

Shown on left cylinder head
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) should never perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01D | ||
| 1 | Remove air filter housing | AR09.10-P-1150CMG | |
| 2 | Detach the electrical feed lines from the ignition coils (T1/1 to T1/8) to ignition coils | ||
| 3 | Release electrical connections (2) from ignition coils (T1 1 to T18) and pull off | ||
| 4 | Remove screw/bolt (3) | *BA15.10-P-1001-04B | |
| 5 | Remove ignition coils (T1/1 to T1/8) | ||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run |
IGNITION COIL
| Number | Designation | ENGINE 156, 159 | |
|---|---|---|---|
| BA15.10-P-1001-04B | Screw/bolt, ignition coil to cylinder head cover | Nm | 6 |
