Remove/install oil pan - AR01.45-P-7500MCU

ENGINE 132.910 in MODEL 451.3/4

Shown on vehicle with Code (I01) AC Plus

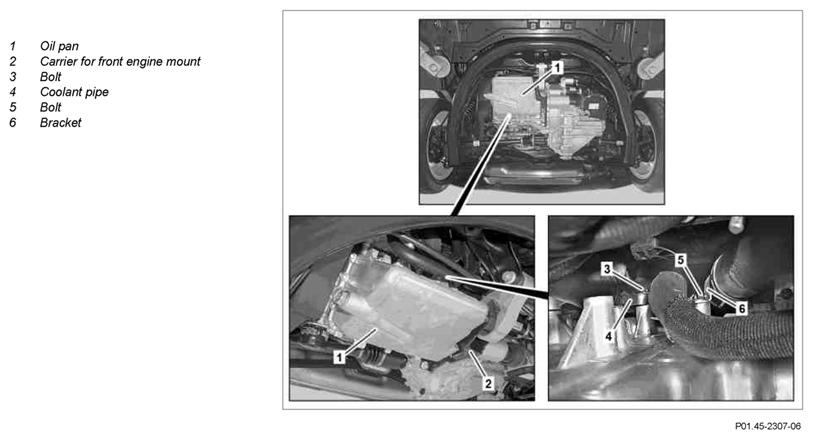

Fig 1: Identifying Oil Pan Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Drain engine oil
	Engine oil and filter change		AP18.00-P-0101MCU
2	Remove fender liner in right rear fender	On vehicles with code (I01) Air conditioning Plus	AR88.10-P-1400MCU
3	Remove poly-V belt for refrigerant compressor	On vehicles with code (I01) Air conditioning Plus	AR13.21-P-1202MCU
4	Detach refrigerant compressor to oil pan (1)		AR83.55-P-5300-04MCU
			*BA83.55-P-1001-01V
			*BA83.55-P-1002-01V
5	Remove carrier for front engine mount (2)		AR22.10-P-1001MCU
6	Remove bolt (3) for coolant pipe (4) to oil pan (1)		*BA20.10-P-1010-01J
7	Remove bolt (5) for bracket (6) to oil pan (1)
8	Remove oil pan bolts (1) on cylinder crankcase and on timing case cover	The oil pan (1) is fixed using eight bolts on the cylinder crankcase and with four bolts on the timing case cover.	*BA01.45-P-1001-01J
9	Detach and remove oil pan (1) using a blade on the cylinder crankcase as well as on the timing case cover		Figure
		: Clean sealing surfaces. Coat sealing surface to oil pan (1) with sealant. Replace seal ring on timing case cover. Sealant	*BR00.45-Z-1053-01A
	Information on application of sealant to oil pan		AH01.45-P-0001-01MCC
10	Install in the reverse order

Fig 2: Identifying Knife (122 589 00 28 00)

Courtesy of MERCEDES-BENZ USA
