Remove/install end cover together with shaft seal - AR01.40-P-8920MCU

ENGINE 132.910 in MODEL 451.3/4

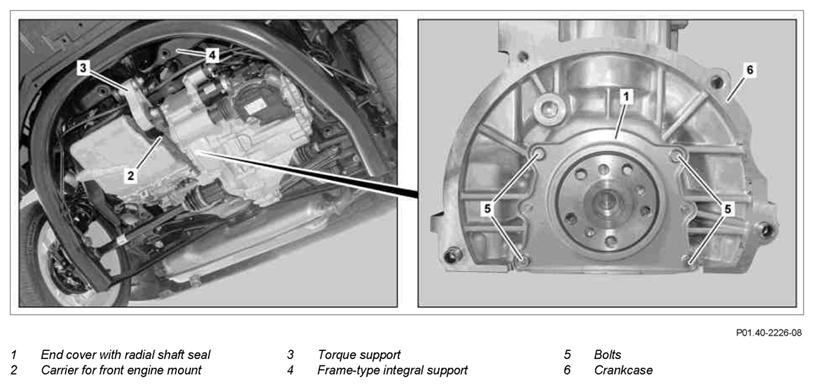

Fig 1: Identifying End Cover Together With Shaft Seal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove oil pan	Remove front engine mount carrier (2) together with torque support (3). To do this remove bolt for torque support (3) on frame-type integral support (4).	AR01.45-P-7500MCU
2	Reinstall front engine mount carrier (2) together with the torque support (3).	On order to support the engine during the work procedure.
3	Remove flywheel		AR03.30-P-8002MCU
4	Remove bolts (5)		*BA01.40-P-1006-01M
5	Detach and remove end cover together with radial shaft seal (1) on crankcase (6)	Make sure that surfaces are completely clean to prevent leaks around the end cover with radial shaft sealing ring (1). : Clean sealing surface on crankcase (6) (e.g. with acetone), clean contact surface to crankshaft with a clean rag without using cleaning agent. Apply sealant to cylinder crankcase (6). Sealant	*BR00.45-Z-1053-01A
	Notes on application of sealant to end cover with radial shaft seal		AH01.40-P-1000-06MCC
6	Install in the reverse order

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		ENGINE 132.9
BA01.40-P-1006-01M	Bolt connecting end cover of radial shaft sealing ring to the crankcase	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1053-01A	Sealant	Q0000282V000000000
