Remove/install a flywheel - AR03.30-P-8002MCU

ENGINE 132.910 in MODEL 451.3/4

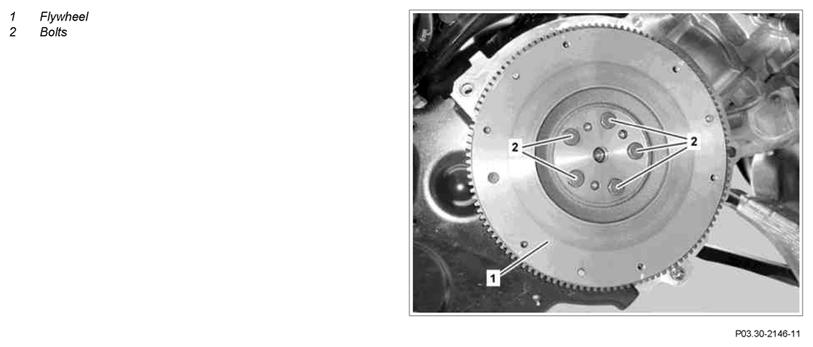

Fig 1: Identifying Flywheel Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove clutch		AR25.10-P-0050MCU
2	Remove bolts (2)	Install new self-locking bolts (2). : To exclude any possibility of offset angle errors, a bending rod torquing angle wrench must not be used for tightening. If no torquing angle wrench is available, the bolts (2) can be torqued further by the specified angle in a single operation using a wrench and Tommy bar.	*BA03.30-P-1002-01P
3	Detach retaining lock for engine		AR03.30-P-1600-06MCC
			Figure
4	Remove flywheel (1) from crankshaft	Observe installation position of flywheel (1). : Check flywheel (1) for wear; replace if necessary.
5	Install in the reverse order

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			ENGINE 132.9
BA03.30-P-1002-01P	Bolt, flywheel to crankshaft	Stage 1	Nm	20
BA03.30-P-1002-01P	Bolt, flywheel to crankshaft	Stage 2	∠°	90

Fig 2: Identifying Retaining Lock (451 589 01 40 00)

Courtesy of MERCEDES-BENZ USA
