Remove/install rear-end door - AR72.20-P-3500MCC

MODEL 451.3/4

Bottom rear-end door

Illustrated on model 451.4

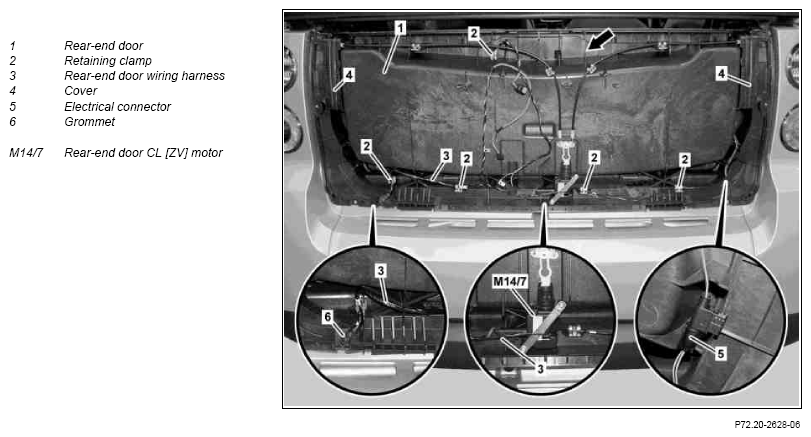

Fig 1: Identifying Rear-End Door Remove/Install Components - Illustrated On Model 451.4 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

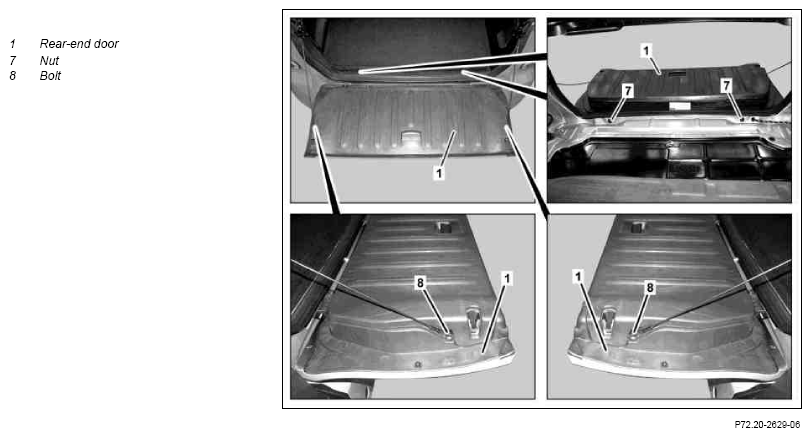

Fig 2: Identifying Rear-End Door Remove/Install Components - Illustrated On Model 451.4 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door paneling from rear-end door (1).		AR72.20-P-1000MCC
2	Remove covers (4) from left and right door lock on rear-end door (1).
3	Separate electrical connector (5)	On model 451.3 the electrical connector (5) is located in the marked area (arrow).
4	Disconnect electrical connector from rear-end door CL motor (M14/7)
5	Loosen retaining clamp (2) from rear-end door wiring harness (3) and expose rear-end door wiring harness (3) on rear-end door (1).
6	Loosen grommet (6) on rear-end door (1)
7	Open rear-end door (1) and loosen bolt (8) on left and right door check strap on rear-end door (1).	The bolt (8) remains on the corresponding door check strap.
			*BA72.20-P-1002-02F
8	Lift load compartment floor covering, unscrew nut (7) on left and right hinge on rear-end door (1) and remove rear-end door (1).		*BA72.20-P-1003-02F
9	Remove rear-end door CL motor (M14/7)	When replacing rear-end door (1).	AR80.20-P-4005MCC
10	Remove inner cover from rear-end door (1)	When replacing rear-end door (1).	AR72.20-P-0001MCC
11	Remove door locks on rear-end door (1).	When replacing rear-end door (1).
		Door lock on upper rear-end door on model 451.3	AR72.20-P-2550MCC
		Door lock on lower rear-end door on model 451.3	AR72.20-P-2550MCD
		Model 451.4	AR72.20-P-2550MCO
12	Unclip cable on rear-end door (1) and remove.	When replacing rear-end door (1). On model 451.3 only one cable is installed on the rear-end door (1).
13	Remove foam rubber insert for arresting removed side supports from rear-end door (1).	When replacing rear-end door (1) on model 451.4.
14	Install in the reverse order
15	Adjust rear-end door (1)		AR72.20-P-3510MCC
