Remove/install rear-end door lock - AR72.20-P-2550MCC
MODEL 451.3
Rear-end door upper section
| Remove/install | |||
| 1 | Remove bottom rear-end door paneling | AR72.20-P-1000MCC | |
| 2 | Remove seal (1) on bottom rear-end door | ||

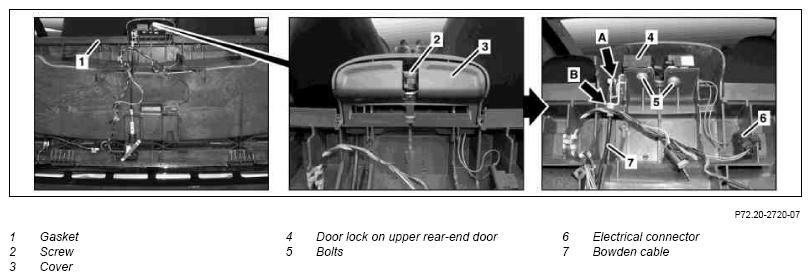

| 3 | Remove bolt (2) and remove cover (3) | ||
| 4 | Detach electrical connector (6) from rear-end door and disconnect | ||
| 5 | Unscrew bolts (5) and remove rear-end door upper section lock (4) until Bowden cable (7) is accessible | ||
| 6 | Unclip Bowden cable (7) from brackets (arrows A, B) and remove rear-end door upper section lock (4) | ||
| 7 | Install in the reverse order |
