Remove/install inner cover on rear-end door - AR72.20-P-0001MCC
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove rear-end door paneling | AR72.20-P-1000MCC | |

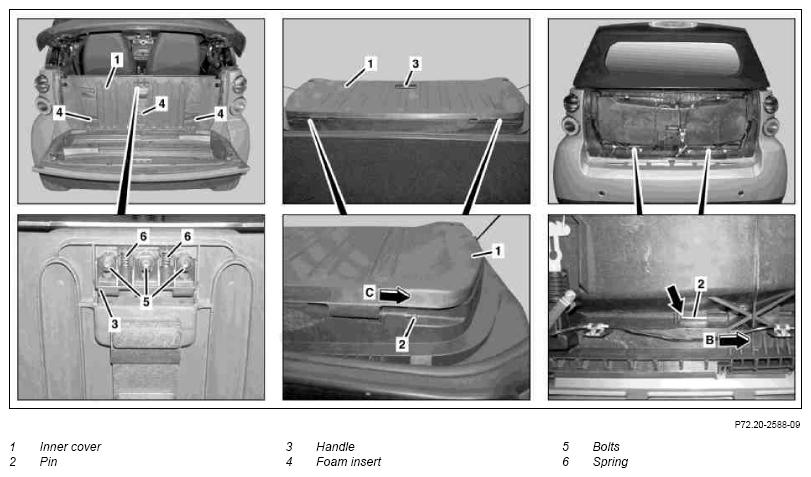

| 2 | Slightly pull left and right pins (2) toward rear, loosen from bracket (arrow) and slide out in direction of arrow (arrow B). | ||
| 3 | Open bottom rear-end door and continue to slide out pin (2) in direction of arrow (arrow C) and remove. | ||
| 4 | Remove inner cover (1) upward. | ||
| 5 | Remove foam insert (4) at inside of inner cover (1). | When replacing inner cover (1). | |
| 6 | Unscrew bolts (5) on handle (3) and remove handle (3) with springs (6). | When replacing inner cover (1). |
|
| 7 | Install in the reverse order |
