Retrofitting trunk lamp - AN82.20-P-0002MCC

MODEL 451.3 (except 451.39)

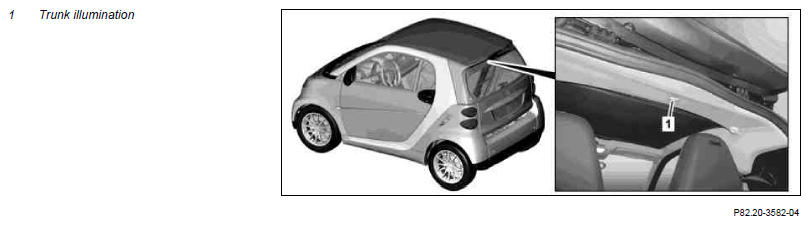

Fig 1: Identifying Trunk Illumination

Courtesy of MERCEDES-BENZ USA

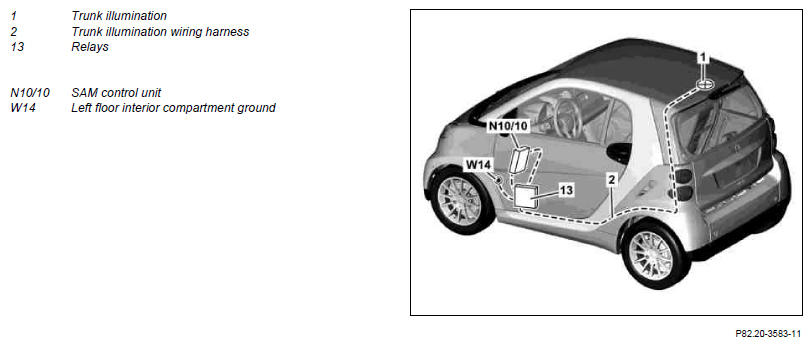

Fig 2: Identifying Trunk Lamp Related Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Disconnect battery ground line		AR54.10-P-0003MCC
2	Remove rear roof frame trim		AR68.30-P-4470MCC
3	Remove left side paneling in trunk	* not for USA	AR68.30-P-4800MCC
		* for USA only	AR68.30-P-4800MCU
4	Fold down SAM control unit (N10/10) until connector 8 is accessible at SAM control unit (N10/10)	* not for USA	AR54.21-P-1254MCC
		* for USA only	AR54.21-P-1254MCU
	Install
5	Retrofit trunk illumination wiring harness (2)		AN82.20-P-0001-01MCC
		Wiring harness repair kit, basic	Figure
		Assembly wedge	Figure
6	Install SAM control unit (N10/10)	* not for USA	AR54.21-P-1254MCC
		* for USA only	AR54.21-P-1254MCU
7	Install left side paneling in trunk	* not for USA	AR68.30-P-4800MCC
		* for USA only	AR68.30-P-4800MCU
8	Prepare rear roof frame paneling for installation of trunk illumination (1)	Rechargeable drill/screwdriver	AN82.20-P-0001-02MCC
		Graduated drill	Figure
9	Install rear roof frame trim		AR68.30-P-4470MCC
10	Connect ground cable to battery		AR54.10-P-0003MCC
11	Perform function test of trunk illumination (1)

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Graduated Drill (450 589 00 28 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTES

Part no.	Designation	Quantity
See Odus	BRABUS trunk illumination
