Remove/install rear roof frame paneling - AR68.30-P-4470MCC

MODEL 451.3

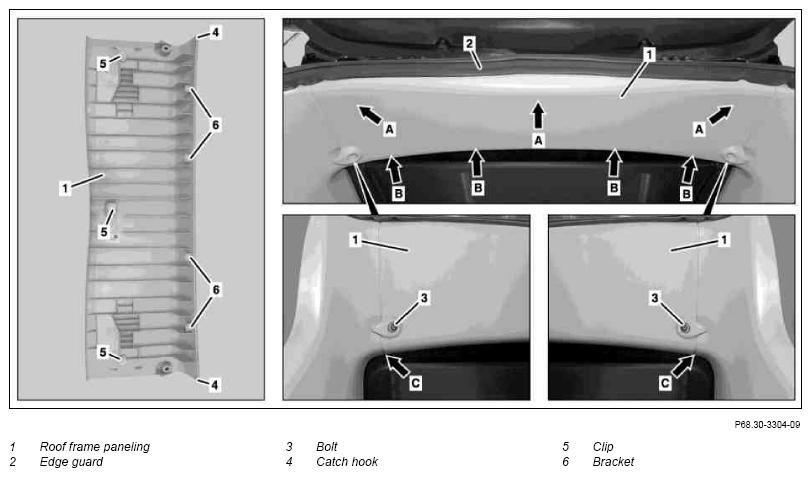

Fig 1: Identifying Rear Roof Frame Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move seats forward
2	Unscrew bolt (3) on left and right from roof frame paneling (1).
3	Unclip clips (5) from roof frame paneling (1) in marked area (arrows A).	Clip clips (5) on roof frame paneling (1) into body and position edge guard (2) above roof frame paneling (1).
4	Loosen catch hook (4) on roof frame paneling (1) in marked area (arrows C).
5	Carefully slide roof frame paneling (1) forward and unhook brackets (6) of roof frame paneling (1) from body in marked area (arrows B) and remove.
6	Install in the reverse order
