Retrofit telephone console - AZ82.70-P-0010MCU

MODEL 451.3/4 up to 8/30/10

with CODE 494 (US version)

except CODE P02 (car2go)

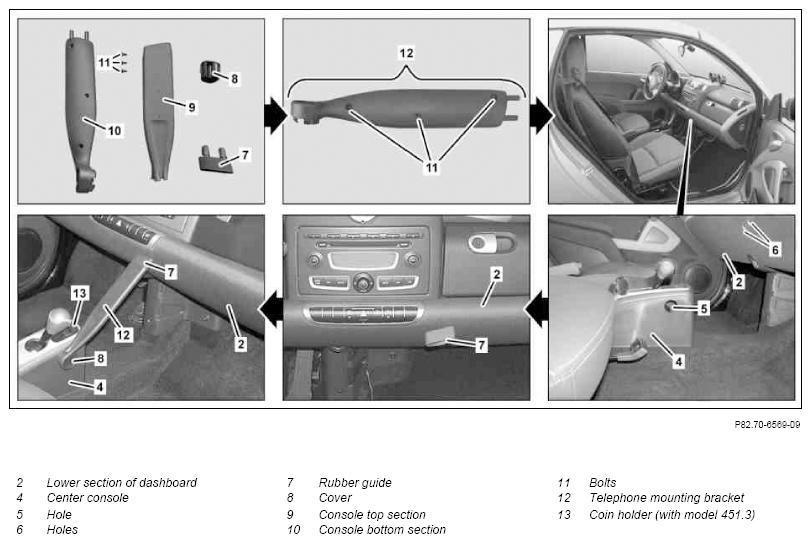

Fig 1: Identifying Telephone Console Related Components

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 451.3

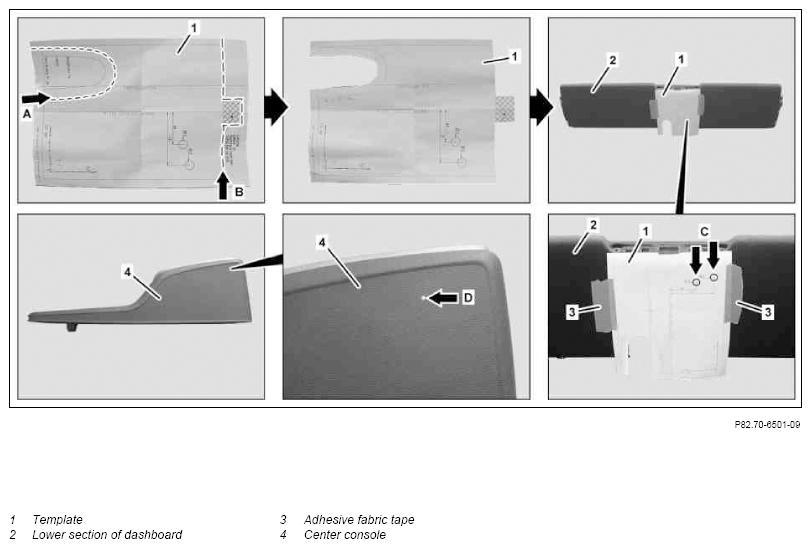

Fig 2: Identifying Telephone Console Related Components - Shown On Model 451.3

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove dashboard bottom section (2) and place onto a suitable base
			AR68.10-P-1040MCU
2	Remove center console (4) and place onto a suitable base
			AR68.20-P-2000MCU
3	Unclip coin holder (13) from center console (4) and remove	Model 451.3 up to 8/30/10 with code 494 (US version) except code P02 (car2go)
	Install
4	Cut template (1) included in delivery contents along broken lines (arrows A, B)
5	Position template (1) as shown on instrument panel lower section (2) and fix in place using suitable duct tape (3)
6	Place dashboard bottom section (2) on a suitable wooden support and align
7	Drill holes (6) in accordance with the markings (arrows C) with a diameter of 12 mm
8	Remove template (1)
9	Install dashboard bottom section (2)
			AR68.10-P-1040MCU
10	Install cockpit switch group
			AR54.25-P-1000MCC
11	Install vertical strut paneling
			AR68.00-P-1500MCC
12	Drill a hole (5) with a diameter of 37 mm in the marked area (arrow D) on the right side of the center console (4)	The marking (arrow D) is embossed into the center console (4).
		Graduated drill	Figure
13	Install center console (4)
		On MODEL 451.4 the power soft top switch is installed at a later stage.	AR68.20-P-2000MCU
14	Position console top section (9) on console bottom section (10) and tighten with bolts (11)
15	Insert rubber guide (7) into holes (6) in dashboard bottom section (2)	Pay attention to installation position.
16	Insert telephone mounting bracket (12) in rubber guide (7) and clip into hole (5) at center console (4)
17	Clip cover (8) into telephone mounting bracket (12)	Counterhold center console (4) from behind through the opening of coin holder (13) or power soft top switch.
18.1	Clip coin holder (13) into center console (4)	Model 451.3 up to 8/30/10 with code 494 (US version) except code P02 (car2go)
18.2	Install power soft top switch	Model 451.4 up to 8/30/10 with code 494 (US version) except code P02 (car2go)
			AR77.39-P-1000MCU
19	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add CODE C10 (Telephone console (DFO)).
20	Document retrofitted equipment in VeDoc	Attach note "Telephone mounting bracket retrofitted as per AZ82.70-P-0010MCU " .

Fig 3: Identifying Graduated Drill (450 589 00 28 00)

Courtesy of MERCEDES-BENZ USA
