Remove/install lower section of dashboard - AR68.10-P-1040MCU
MODEL 451.3/4
With code (294) Kneebag
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01SM | ||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove vertical strut paneling | AR68.00-P-1500MCC | |
| 2 | Remove cockpit switch group | AR54.25-P-1000MCC | |
| 3 | Remove paneling at side of dashboard | AR68.10-P-1503MCU | |

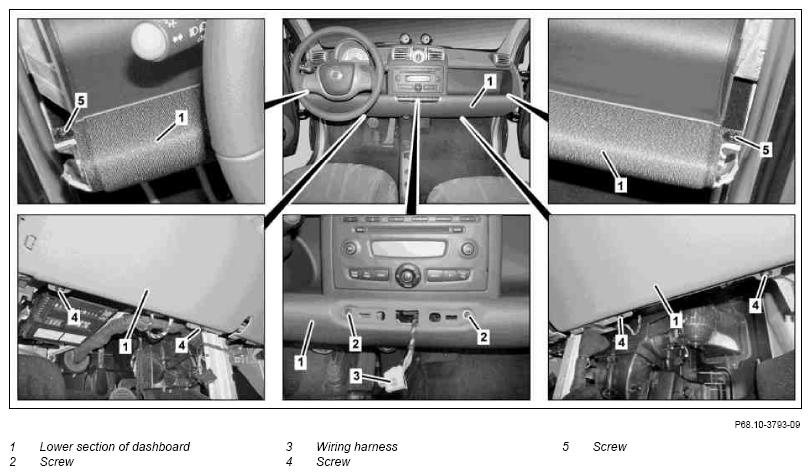

| 4 | Unscrew left and right bolts (4) below instrument panel lower section (1) | ||

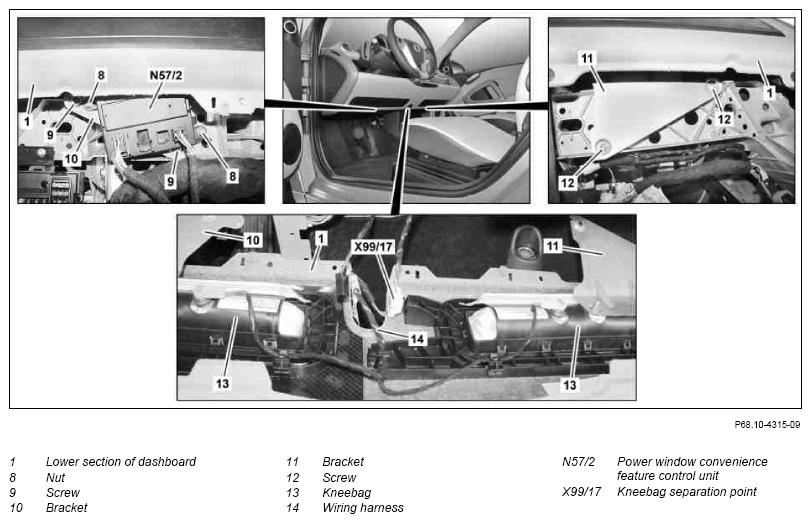

| 5 | Unscrew nuts (8) on power window control unit convenience feature (N57/2) | With code (294) Kneebag | |
| 6 | Remove power window control unit convenience feature (N57/2) and lay down to side with electrical lines connected | With code (294) Kneebag | |
| 7 | Unscrew bolts (9) from bracket (10) | With code (294) Kneebag |
*BA91.60-P-1012-01C |
| 8 | Unscrew bolts (12) from bracket (11) | With code (294) Kneebag |
*BA91.60-P-1012-01C |
| 9 | Unscrew bolts (2) in center of instrument panel lower section (1) | ||
| 10 | Unscrew left and right bolt (5) from instrument panel lower section (1) | ||

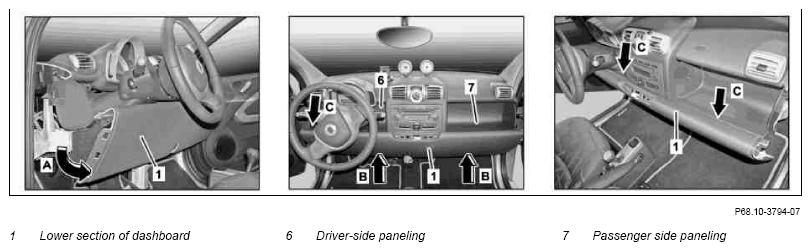

| 11 | Pivot instrument panel lower section (1) out in lower area (arrow A) | ||
| 12 | Route wiring harness (3) through opening in instrument panel lower section (1) | ||
| 13 | Remove instrument panel lower section (1) upward (arrows B) out of driver side paneling (6) and passenger side paneling (7) | ||
| 14 | Disconnect kneebag separating point (X99/17) | With code (294) Kneebag | |
| 15 | Remove instrument panel lower section (1) from vehicle and lay down on suitable base | ||
| 16 | Remove retaining clamps on dashboard lower section (1) | When replacing instrument panel lower section (1) |
|
| 18 | Remove electric cable harness (14) | With code (294) Kneebag, when replacing instrument panel lower section (1). | |
| 19 | Remove left and right kneebag (13) | With code (294) Kneebag, when replacing instrument panel lower section (1). | AR91.60-P-0050MCU |
| 20 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 451.3 | Model 451.4 | |
|---|---|---|---|---|
| BA91.60-P-1012-01C | Screw/bolt, kneebag bracket to crossmember | Nm | 4 | 4 |
