Remove/install rear soft top - AR77.30-P-1150MCO
MODEL 451.4
MODIFICATION NOTES
| 1.4.14 | "Check rear soft top for proper function and formation of wrinkles, if necessary adjust soft top" added | Step 15 |
Shown on left side of vehicle
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||
| 1 | Remove roof cassette seals | AR77.30-P-1109MCO | |
| 2 | Remove left and right bolt (3) | ||

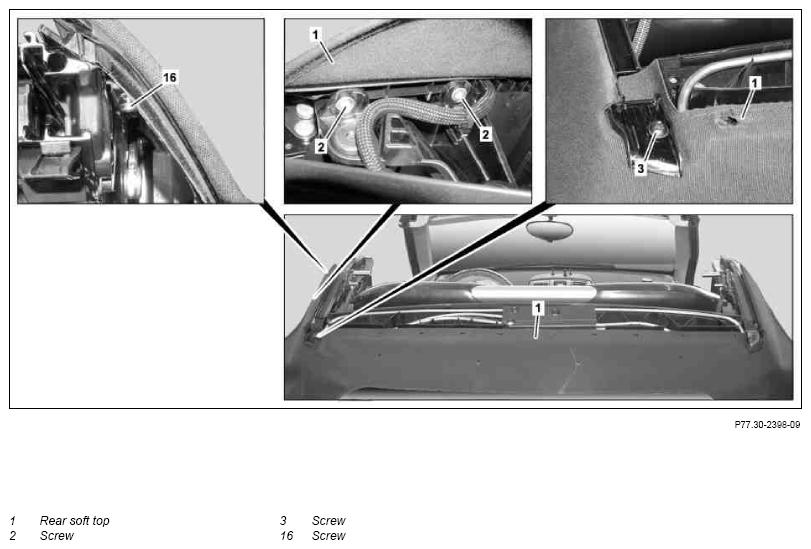

| 3 | Unscrew left and right bolts (2, 16) | ||
| 4 | Unhook rear soft top (1) from roof cassette on left and right and fold toward rear, guide electrical lines through | ||
| 5 | Remove left and right bolt (4) | ||

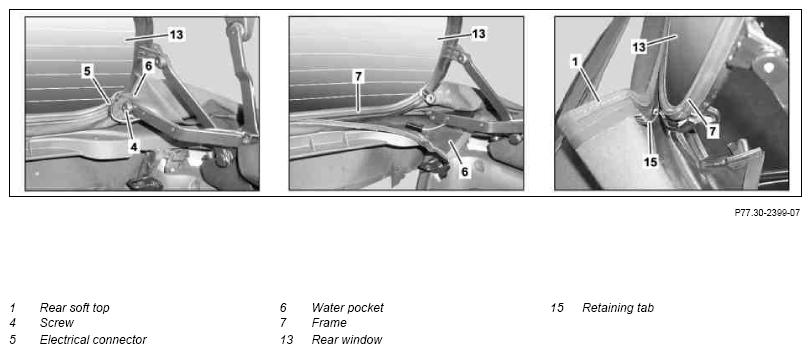

| 6 | Disconnect electrical connectors (5) | ||
| 7 | Pull retaining tab of water pocket (6) out of frame (7) on rear window (13) | ||
| 8 | Pull retaining tab (15) of rear soft top (1) out of frame (7) on rear window (13) | ||

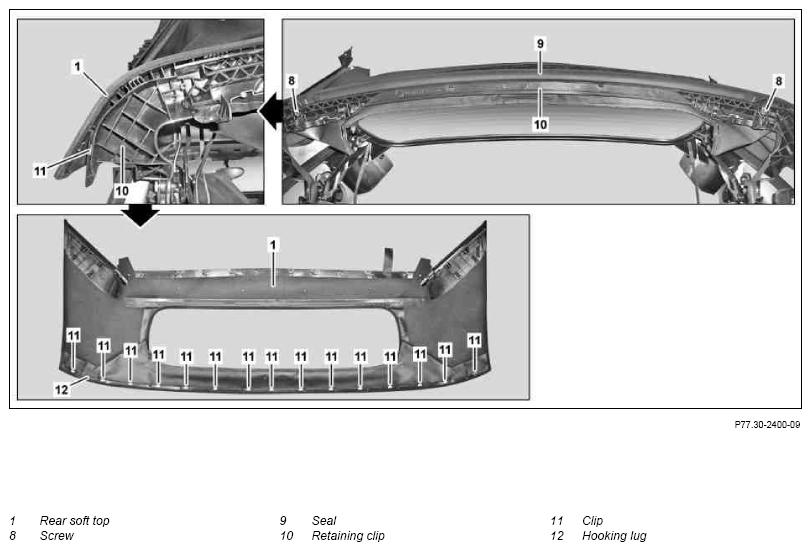

| 9 | Fold up retaining clip (10), unscrew bolts (8) and pull seal (9) out of retaining clip (10) | ||
| 10 | Unhook rear soft top (1) from retaining clip (10) from outside toward inside and remove | ||

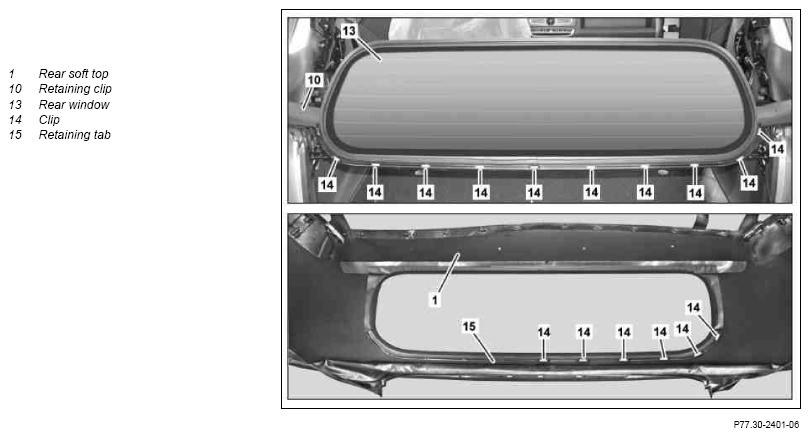

| 11 | Remove clips (11) remaining in retaining clip (10) using suitable tool | ||
| 12 | Fold down rear window (13) and retaining clip (10) | ||
| 13 | Remove clips (14) remaining in rear window (13) of frame (7) with suitable tool | ||
| 14 | Install in the reverse order | ||
| Check | |||
| 15 | Close rear soft top (1) and check for proper function and formation of wrinkles | In the event of complaints: ↓ Adjust soft top |
