Remove/install guide tube for drive cable - AR77.30-P-1112MCO
MODEL 451.4
Shown on left side of vehicle

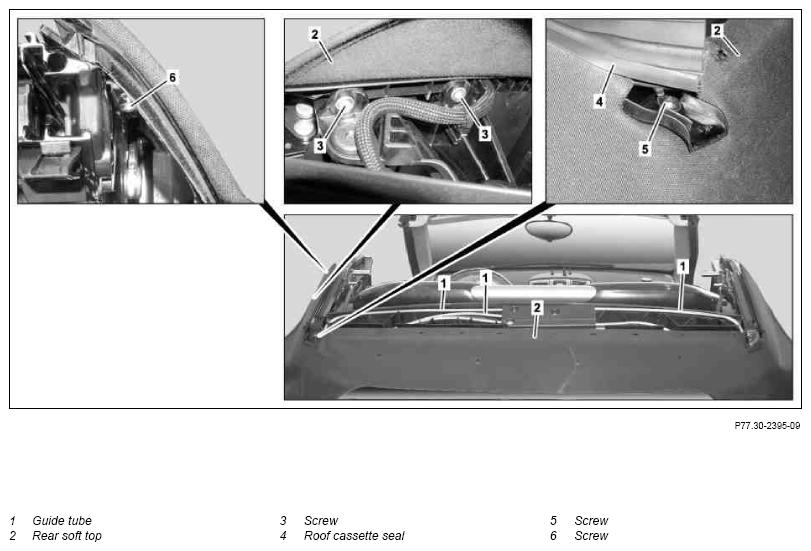

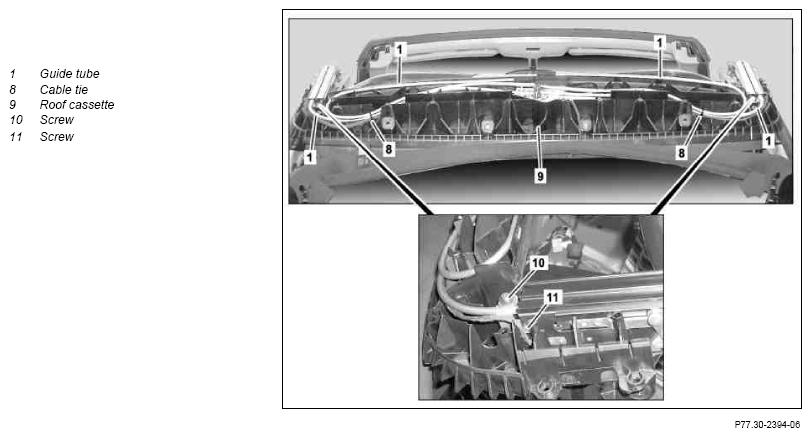

Fig 1: Identifying Guide Tube For Drive Cable Remove/Install Components - Shown On Left Side Of Vehicle
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1 | Remove folding roof drive cable | AR77.30-P-1104MCO | |
| 2 | Remove roof cassette seals (4) | AR77.30-P-1109MCO | |
| 3 | Remove bolts (5) | ||
| 4 | Unscrew bolts (3, 6) | ||
| 5 | Unhook rear soft top (2) from roof cassette (9) and fold toward rear | ||
| 6 | Unscrew bolts (10, 11) | ||
| 7 | Remove cable ties (8) | ||
| 8 | Remove guide tube (1) | ||
| Install | |||
| 9 | Insert guide tube (1) and tighten bolts (10, 11) | ||
| 10 | Provide cable tie (8) | ||
| 11 | Hook rear soft top (2) into roof cassette (9) on left and right | ||
| 12 | Tighten bolts (3, 6) | ||
| 13 | Tighten bolts (5) | ||
| 14 | Install roof cassette seals (4) | AR77.30-P-1109MCO | |
| 15 | Install folding roof drive cable | AR77.30-P-1104MCO |
