Remove/install soft top drive cable - AR77.30-P-1104MCO
MODEL 451.4, 453.4

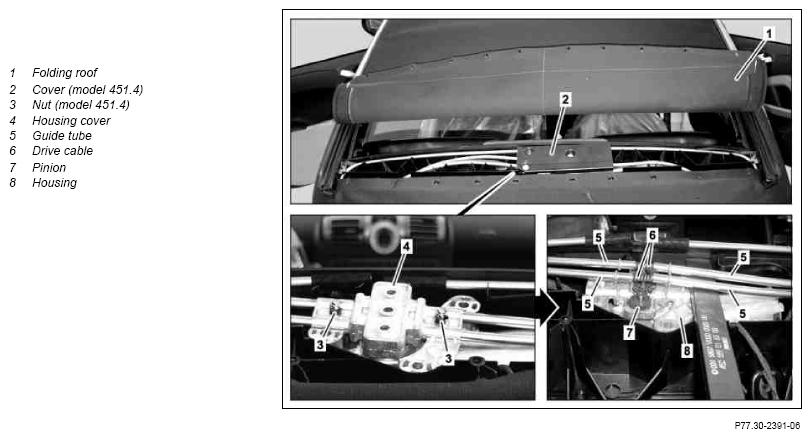

Shown on model 451.4
Shown on model 451.4 with folding roof removed

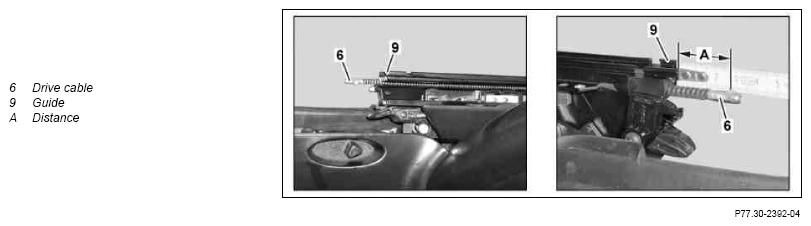

Fig 2: Identifying Soft Top Drive Cable Remove/Install Components - Shown On Model 451.4 With Folding Roof Removed
Shown on left side of vehicle on model 453.4

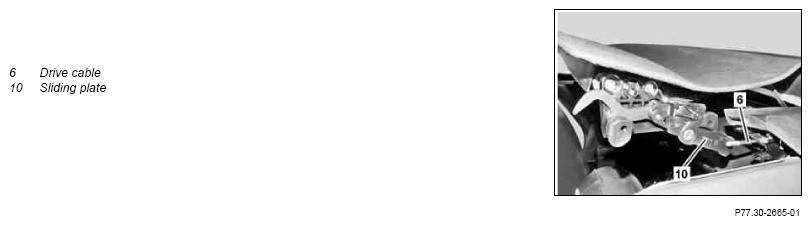

Fig 3: Identifying Soft Top Drive Cable Remove/Install Components - Shown On Left Side Of Vehicle On Model 453.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1.1 | Remove folding roof (1) | Model 451.4 | AR77.30-P-1100MCO |
| 1.2 | Detach folding roof (1) from roof cassette and unhook drive cables (6) from left and right slide plates (10) | Model 453.4 | AR77.30-P-1100MCO |
| 2 | Remove cover (2) | Model 451.4 | |
| 3 | Unscrew nuts (3) and remove housing cover (4) | The housing cover (4) is fastened with bolts instead of nuts (3). |
|
| 4 | Lift guide tube (5) on drive cable (6) | ||
| 5 | Pull drive cable (6) out of guides (9) | Observe installation locations of drive cables (6). Otherwise the folding roof (1) may suffer malfunction or damage. |
|
| Install | |||
| 6 | Insert drive cable (6) into guides (9) until the distance (A) between ends of drive cable (6) and guides (9) is same on left and right | Observe installation locations of drive cables (6). Otherwise the folding roof (1) may suffer malfunction or damage. |
|
| 7 | Align pinion (7) and insert guide tubes (5) and drive cables (6) in housing (8) | ||
| 8 | Put on housing cover (4) and position nuts (3) | The housing cover (4) is fastened with bolts instead of nuts (3). |
|
| 9 | Check distance (A) between drive cable (6) and guides (9) | If deviations are present ↓ Take off housing cover (4), lift guide tubes (5), correct position of drive cables (6) and attach housing cover. Then perform operation steps 7 to 9 again |
|
| 10 | Tighten nuts (3) | The housing cover (4) is fastened with bolts instead of nuts (3). |
|
| 11 | Install cover (2) | Model 451.4 | |
| 12.1 | Install folding roof (1) | Model 451.4 | AR77.30-P-1100MCO |
| 12.2 | Hook drive cables (6) into left and right slide plates (10) and attach folding roof (1) to roof cassette | Model 453.4 | AR77.30-P-1100MCO |
