Remove/install front roof frame paneling - AR68.30-P-4450MCV
MODEL 451.4
| Remove/install | |||
| 1 | Remove front interior lamp | AR82.20-P-0110MCU | |
| 2 | Remove left and right sun visor | AR68.60-P-5480MCU | |
| 3 | Remove inside rearview mirror | AR68.40-P-0001MCU | |

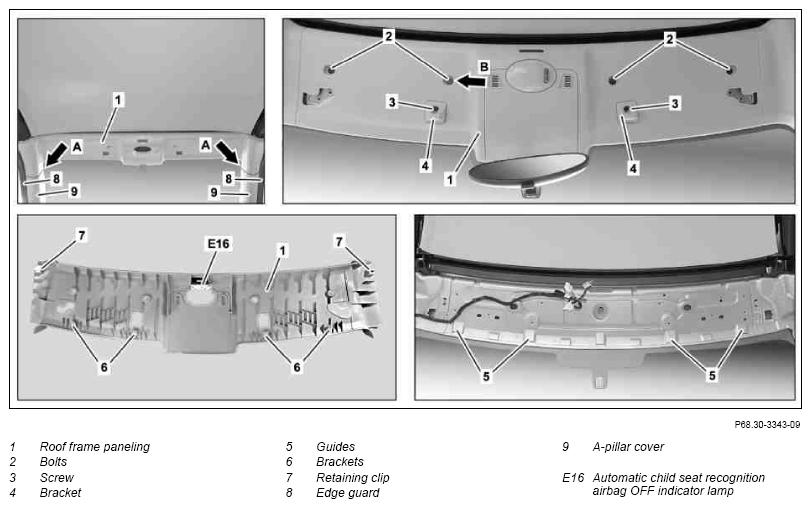

| 4 | Mask off left and right A-pillar paneling (9) in transition areas (arrows A) to roof frame paneling (1) using suitable masking tape | ||
| 5 | Unscrew bolts (3) from roof frame paneling (1) and remove bracket (4) | ||
| 6 | Unscrew bolts (2) from roof frame paneling (1) | ||
| 7 | Carefully unclip left and right retaining clip (7) on roof frame paneling (1) using snap-release tool | ||
| Fig 2 | |||
| 8 | Carefully lift roof frame paneling (1) over left and right A-pillar paneling (9) | ||
| 9 | Push brackets (6) on roof frame paneling (1) toward front out of guides (5) and remove roof frame paneling (1) until electrical connector on automatic child seat recognition airbag OFF indicator lamp (E16) is accessible | ||
| 10 | Disconnect electrical connector from automatic child seat recognition airbag OFF indicator lamp (E16) and remove roof frame paneling (1) | ||
| 11 | Unclip automatic child seat recognition airbag OFF indicator lamp (E16) from roof frame paneling (1) and remove | When replacing roof frame paneling (1). | |
| 12 | Unclip ambiance illumination from roof frame paneling (2) and remove | When replacing roof frame paneling (2) on vehicles as of 31.8.10 and with code (876) Interior light package. | |
| 13 | Install in the reverse order |
