Remove/install sun visor - AR68.60-P-5480MCU

MODEL 451.3/4

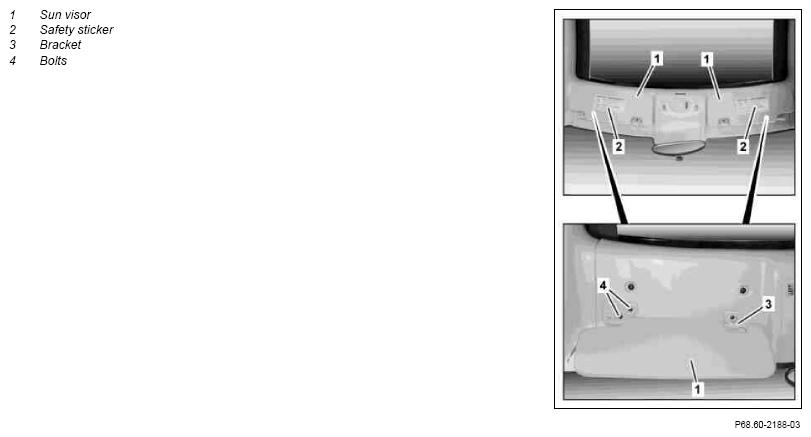

Fig 1: Identifying Sun Visor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold left and right sun visor (1) downward and unclip from bracket (3)
2	Unscrew bolts (4) from sun visor (1)	Install sun visor (1) with vanity mirror on passenger side.
3	Install in the reverse order
4	Attach safety sticker (2) to sun visor (1)	When replacing sun visor (1).
