Remove/install front dome lamp - AR82.20-P-0110MCU

MODEL 451.3/4

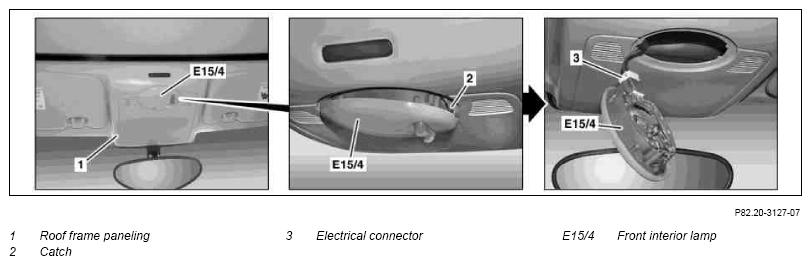

Fig 1: Identifying Front Dome Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip catch (2) of front interior lamp (E15/4) using a suitable tool	Do not damage roof frame panel (1) by scratching it as it must otherwise be replaced.
2	Lead out front interior lamp (E15/4) from roof frame panel (1) until the electrical connector (3) is accessible
3	Disconnect electrical connector (3) and take off front interior lamp (E15/4)
4	Install in the reverse order
5	Perform function test on front interior lamp (E15/4)
