Retrofit iPhone kit - AZ82.70-P-0013MCC

MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10

with CODE 516 (RADIO WITH USB INTERFACE)

except CODE P02 (car2go)

MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10

with CODE C50 (smart radio ten)

except CODE P02 (car2go)

Shown on vehicle up to 30.8.10

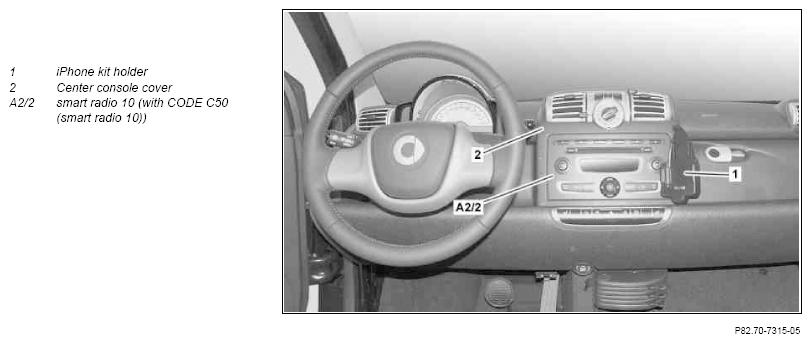

Fig 1: Identifying Iphone Kit Remove/Install Components - Shown On Vehicle Up To 30.8.10
G10979265Courtesy of MERCEDES-BENZ USA

Vehicle as of 31.8.10

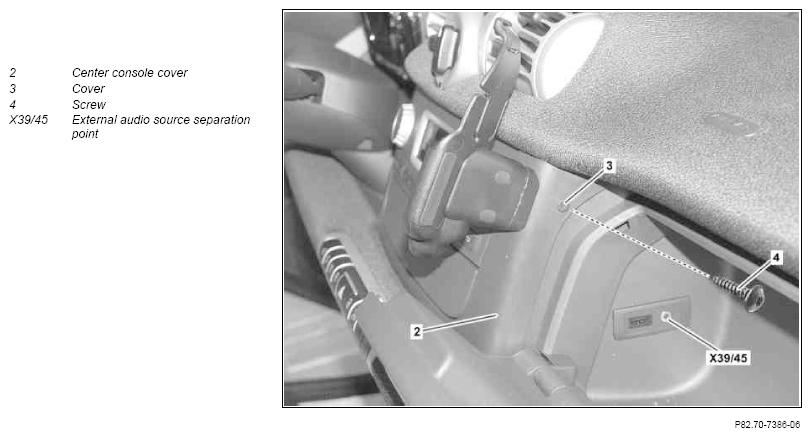

Fig 2: Identifying Iphone Kit Remove/Install Components - Vehicle As Of 31.8.10
G10979266Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove smart radio 10 (A2/2) or smart Entry radio
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR82.60-P-7502MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)		 AR82.60-P-7502MCU
2 Remove paneling of right A-pillar
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR68.30-P-4050MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)		 AR68.30-P-4050MCU
INSTALLING Install
3 Retrofit iPhone kit control unit   AZ82.70-P-0013-02MCC
4 Retrofit iPhone kit wiring harness   AZ82.70-P-0013-01MCC
5 Retrofit iPhone kit microphone   AZ82.70-P-0013-03MCC
6 Install lining on right A-pillar
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR68.30-P-4050MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)		 AR68.30-P-4050MCU
7 Install front roof frame paneling
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR68.30-P-4450MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)		 AR68.30-P-4450MCU
REFER TO TESTING & REPAIR   Model 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR68.30-P-4450MCO
REFER TO TESTING & REPAIR   Model 451.4 (except 451.49) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.4 (except 451.49) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)		 AR68.30-P-4450MCV
8 Retrofit iPhone kit (1) holder to center console cover (2) Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)		 AZ82.70-P-0013-04MCD
9 Install smart radio 10 (A2/2) or smart Entry radio
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code 494 (US version)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code 494 (US version)
except code P02 (car2go)		 AR82.60-P-7502MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 494 (US version)
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code 494 (US version)
with code C50 (smart radio ten)
except code P02 (car2go)
IMPORTANT Do not install the cover of the center console (2) yet.		 AR82.60-P-7502MCU
10 Retrofit iPhone kit (1) holder to center console cover (2) Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code P02 (car2go)		 AZ82.70-P-0013-04MCC
11 Install center console cover (2)
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with code C50 (smart radio ten)
except code P02 (car2go)		 AR68.20-P-2350MCC
REFER TO TESTING & REPAIR   Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
NOTES
Ensure that the wiring harness of the iPhone kit holder (1) is not crushed upon installation of the center console cover (2).
Otherwise this may be damaged.		 AR68.20-P-2350MCF
12 Tighten center console cover (2) with the screw/bolt (4) contained in the delivery contents and attach cover (3) Model 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with code 516 (RADIO WITH USB INTERFACE)
except code P02 (car2go)
13 Perform function test by means of a telephone conversation using one iPhone IMPORTANT The "smart app" does not have to be installed to perform a function test of the iPhone kit.
Insert iPhone into the iPhone kit holder (1) as explained in the provided operating instructions. In vehicles as of 31.8.10, the external audio source connecting point (X39/45) installed as standard is no longer available.
14 Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) IMPORTANT
  • Add iPhone kit.

15 Document retrofitted equipment in VeDoc IMPORTANT Attach note "iPhone kit retrofitted as per AZ82.70-P-0013MCC " under field organization text .
16 Carry out initial startup of the iPhone Kit with customer and customer iPhone Only on customer request.
IMPORTANT Install Bluetooth connection and "smart app" in accordance with the provided operating instructions.
PARTS ORDERING NOTES

Part no. Designation Quantity
See Odus iPhone kit for iPhone 3G/3Gs 1
See Odus iPhone kit for iPhone 4 1
