Retrofit ambiance illumination - AZ82.20-P-0010MCC
MODEL 451.3/4 up to 30.8.10 except CODE (P02) car2go
| Remove | |||
| 1 | Disconnect ground line of battery | AR54.10-P-0003MCC | |
| 2 | Remove inside rearview mirror | * not for USA | AR68.40-P-0001MCC |
| * for USA only | AR68.40-P-0001MCU | ||
| 3 | Remove front roof frame paneling | Model 451.3 * not for USA |
AR68.30-P-4450MCC |
| * for USA only | AR68.30-P-4450MCU | ||
| Model 451.4 * not for USA |
AR68.30-P-4450MCO | ||
| * for USA only | AR68.30-P-4450MCV | ||
| 4 | Remove paneling on right A-pillar | * not for USA | AR68.30-P-4050MCC |
| * for USA only | AR68.30-P-4050MCU | ||
| 5 | Remove SAM control unit and place to one side with electrical lines connected | * not for USA | AR54.21-P-1254MCC |
| * for USA only | AR54.21-P-1254MCU | ||
| Install | |||

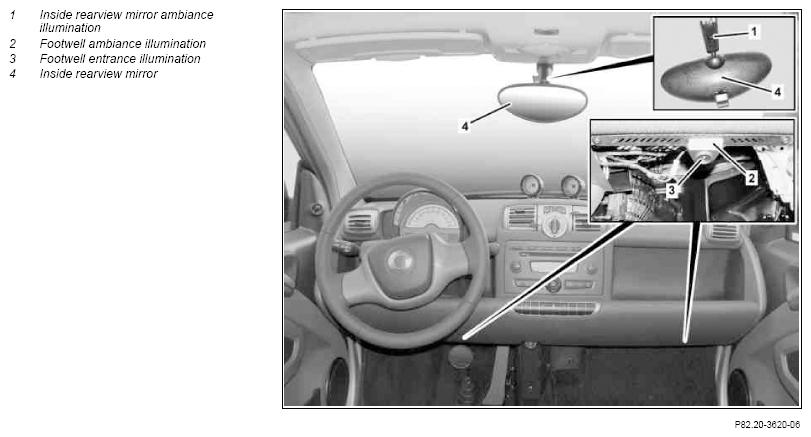

| 6 | Retrofit inside rearview mirror ambiance illumination (1) | AZ82.20-P-0010-03MCC | |
Rechargeable drill/screwdriver |
Fig 4 | ||
| 7 | Retrofit ambiance illumination wiring harness | Vehicles without retrofit BRABUS twin headlamps or without daytime running light headlamps. | AZ82.20-P-0010-01MCC |
| Figure | |||
| Vehicles with retrofitted BRABUS twin headlamps or with daytime running lights headlamps | AZ82.20-P-0010-01MCD | ||
| Figure | |||
| Fig 3 | |||
| Fig 5 | |||
| 8 | Clip left tweeter into instrument panel | On vehicles with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or with code (C54) Sound system 2 | AR82.62-P-1000MCC |
| 9 | Install trim at right A-pillar | * not for USA | AR68.30-P-4050MCC |
| * for USA only | AR68.30-P-4050MCU | ||
| 10 | Install front roof frame paneling | Model 451.3 * not for USA |
AR68.30-P-4450MCC |
| * for USA only | AR68.30-P-4450MCU | ||
| Model 451.4 * not for USA |
AR68.30-P-4450MCO | ||
| * for USA only | AR68.30-P-4450MCV | ||
| 11 | Retrofit footwell ambiance illumination (2) and footwell entrance illumination (3) | AZ82.20-P-0010-02MCC | |
| 12 | Connect ground cable to battery | AR54.10-P-0003MCC | |
| 13 | Perform function test of ambiance illumination | With circuit 58 On, footwell ambiance illumination (2) and inside rearview mirror ambiance illumination (1) light up. |
