Check and correct the adjustment of the headlamps - AP82.10-P-8260MCU

Shown on vehicle with code (V07) Front fog lamps (FFO)

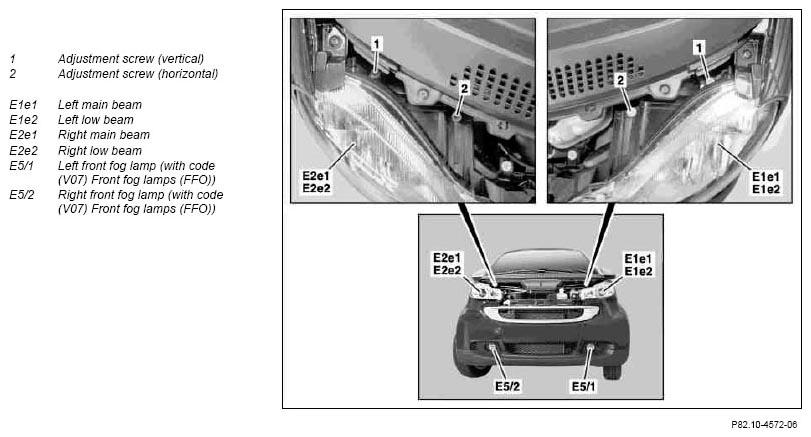

Fig 1: Identifying Adjustment Screws

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

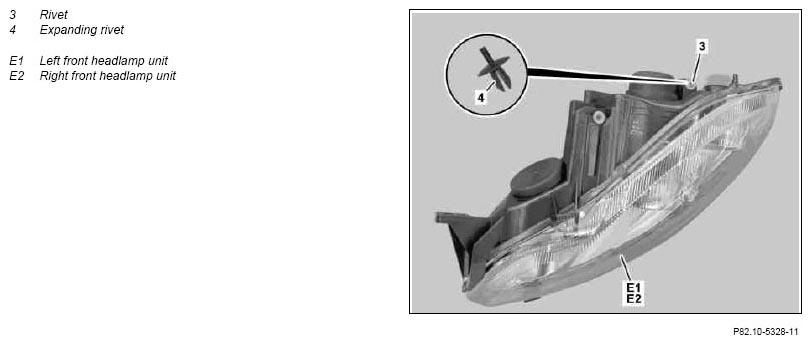

Fig 2: Identifying Front Headlamp Unit And Expanding Rivet

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

14.5.08

Adjust headlamps in the vertical direction, added

Steps 8, 9, 10, 13, 14 and 15

	Removing
1	Drive vehicle onto level surface.	The vehicle must be in the ready-to-drive condition (curb weight, fuel tank full or corresponding additional weight). Front wheels in straight-ahead position.
2	Check tire pressure, correct if necessary		AP40.15-P-4061MCU
3	Place 75 kg or one person on driver seat and set headlamp height adjustment to "0"
4	Remove maintenance flap
	Checking
5	Align headlamp aimer with the vehicle and perform height adjustment towards the center of the headlamps	Follow operating instructions of the headlamp aimer. Headlamp aimer http://gotis.aftersales.mercedes-benz.com
6	Switch on left high beam (E1e1) and right high beam (E2e1)
7	Check adjustment of the left high beam (E1e1) and right high beam (E2e1), if necessary adjust the left high beam (E1e1) or right high beam (E2e1) at the adjustment screw (horizontal) (2)		AP82.10-P-8260-02MCC
8	Remove rivet (3) or expanding rivet (4) which is located above the adjustment screw (vertical) (1)	If the left high beam (E1e1) or right high beam (E2e1) has to be adjusted in the vertical direction. The expanding rivet (4) can be removed when the left front lamp unit (E1) or right front lamp unit (E2) is installed. To drill out the rivet (3) the left front lamp unit (E1) or right front lamp unit (E2) must be removed. See: ↓
		Remove/install lamp unit	AR82.10-P-4730MCU
9	Install left front lamp unit (E1) and right front lamp unit (E2)	If the rivet (3) above the adjustment screw (vertical) (1) has been removed.	AR82.10-P-4730MCU
10	Adjust the left high beam (E1e1) or right high beam (E2e1) at the adjustment screw (vertical) (1)	If the left high beam (E1e1) or right high beam (E2e1) has to be adjusted in the vertical direction.	AP82.10-P-8260-02MCC
11	Switch on left low beam (E1e2) and right low beam (E2e2)
12	Check adjustment of the left low beam (E1e2) and the right low beam (E2e2) if necessary adjust the left low beam (E1e2) or right low beam (E2e2) at the adjustment screw (horizontal) (2)		AP82.10-P-8260-05MCC
13	Remove rivet (3) or expanding rivet (4) which is located above the adjustment screw (vertical) (1)	If the left low beams (E1e2) or right low beam (E2e2) has to be adjusted in the vertical direction and the rivet (3) or expanding rivet (4) is still fitted. The expanding rivet (4) can be removed when the left front lamp unit (E1) or right front lamp unit (E2) is installed. To drill out the rivet (3) the left front lamp unit (E1) or right front lamp unit (E2) must be removed. See: ↓
		Remove/install lamp unit	AR82.10-P-4730MCU
14	Install left front lamp unit (E1) and right front lamp unit (E2)	If the rivet (3) above the adjustment screw (vertical) (1) has been removed.	AR82.10-P-4730MCU
15	Adjust left low beam (E1e2) or right low beam (E2e2) at the adjustment screw (vertical) (1)	If the left low beam (E1e2) or right low beam (E2e2) has to be adjusted in the vertical direction.	AP82.10-P-8260-05MCC
16	Switch on left front fog lamp (E5/1) and right front fog lamp (E5/2)	On vehicles with code (V07) Front fog lamps (FFO)
17	Check adjustment for left fog lamp (E5/1) and right fog lamp (E5/2), correct if necessary	On vehicles with code (V07) Front fog lamps (FFO)	AP82.10-P-8260-04MCC
	Install
18	Clip the expanding rivet (4) above the adjustment screw (vertical) (1) into the left front lamp unit (E1) or right front lamp unit (E2)	If the rivet (3) or expanding rivet (4) above the adjustment screw (vertical) (1) has been removed.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 88 (see EPC)	Expanding rivet	2
