Correct tire inflation pressure - AP40.15-P-4061MCU

MODEL 451.3/4

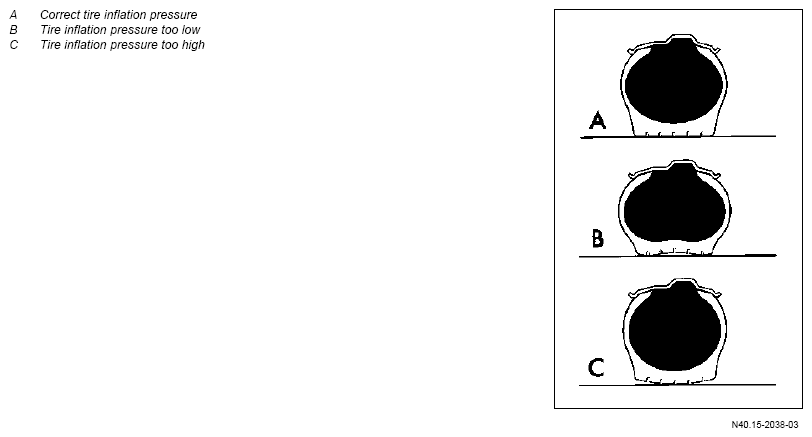

Fig 1: Identifying Correct Tire Inflation Pressure

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

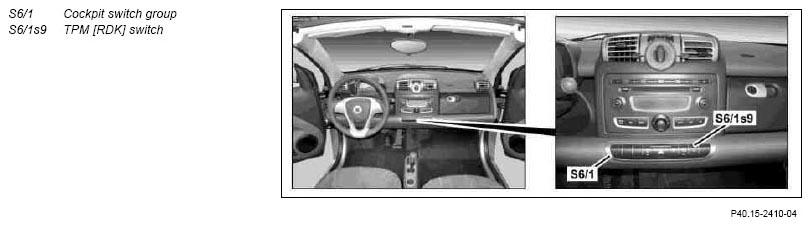

Fig 2: Identifying Cockpit Switch Group And TPM [RDK] Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Information on tires / rims		AH40.10-P-9411-01MCU
1	Obtain tire inflation pressure from the table		AP40.15-P-4060-01MCU
2	Unscrew dust caps from the valves
3	Check and correct tire inflation pressure.	Check and correct tire inflation pressure only when tires are cold.
4	Screw dust caps onto the valves
5	Press TPM switch (S6/1s9) in the cockpit switch group (S6/1) and thereby recalibrate the tire pressure monitoring system
