Remove/install lamp unit - AR82.10-P-4730MCU

MODEL 451.3/4

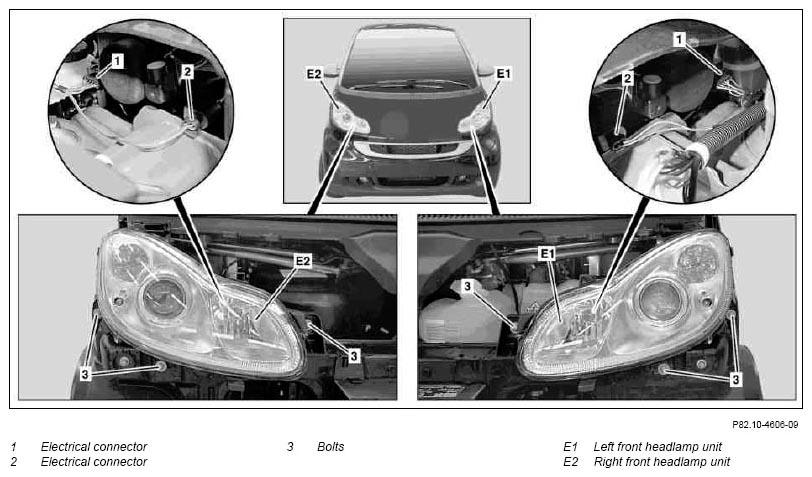

Fig 1: Identifying Front Headlamp Units, Electrical Connectors And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove front CBS	AR88.00-P-1010MCC
2	Disconnect electrical connector (1) from left front lamp unit (E1) or right front lamp unit (E2)
3	Disconnect electrical connector (2) from left standing light or right standing light
4	Remove bolts (3) from left front lamp unit (E1) or right front lamp unit (E2)
5	Remove left front lamp unit (E1) and right front lamp unit (E2)
6	Install in the reverse order
7	Check adjustment of left front lamp unit (E1) or right front lamp unit (E2) and correct if necessary
	Check and correct the adjustment of the headlamps	AP82.10-P-8260MCU
