Remove/install mechanical stop lamp switch - AR42.10-P-0040MCC
MODEL 451.3/4
MODEL 450.3/ 4

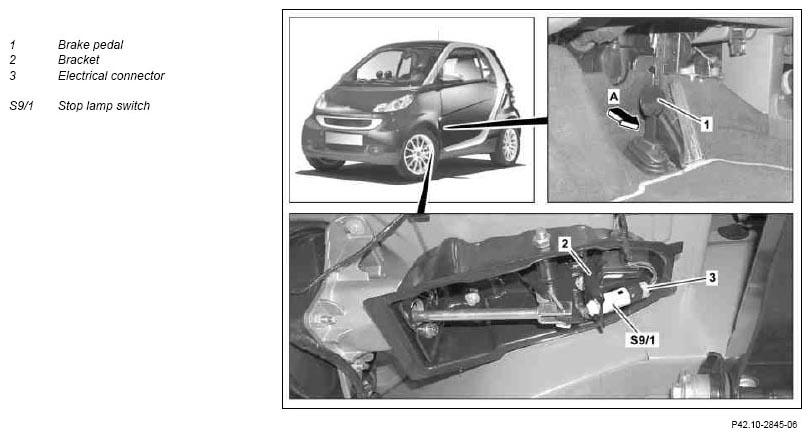

Illustrated on model 451
MODIFICATION NOTES
| 22.9.10 | Work procedure completely revised owing to new self-adjusting brake light switch (S9/1) | Operation steps 1 to 12 |
| Remove | |||
| 1 | Remove brake pedal module cover | ||
| Type 450 | AR29.10-P-0330SM | ||
| Model 451 | AR29.10-P-0330MCC | ||
| 2 | Disconnect electrical connector (3) on brake light switch (S9/1) | ||
| 3 | Turn brake light switch (S9/1) 90° counterclockwise and remove from bracket (2) | ||
| Checking | |||
| 4 | Check that punch holes are present in boot on brake pedal (1); make punch holes if necessary and install boot | Only on model 450 The new brake pedal module cover will be installed at a later stage. |
|
| Left-hand drive vehicles | AR29.10-P-0340SM | ||
| Right-hand drive vehicles | AR29.10-P-0340SN | ||
| 5 | Check whether catch hooks of pedal assembly seal are all engaged correctly | ||
| Install | |||
| 6 | Insert brake light switch (S9/1) into bracket (2) and turn 90° clockwise as far as end stop | ||
| 7 | Contact electrical connector (3) on brake light switch (S9/1) | ||
| 8 | Install brake pedal module cover | ||
| Type 450 | AR29.10-P-0330SM | ||
| Model 451 | AR29.10-P-0330MCC | ||
| Adjust | |||
| 9 | Pull brake pedal (1) back firmly in direction of arrow (arrow A) | ||
| Checking | |||
| 10 | Connect STAR DIAGNOSIS and delete fault memory | Type 450 | AD00.00-P-2000-04SM |
| Model 451 | AD00.00-P-2000-04MCC | ||
| 11 | Check brake light switch signal using Star Diagnosis | ||
| 12 | Close Star Diagnosis | Type 450 | AD00.00-P-2000-04SM |
| Model 451 | AD00.00-P-2000-04MCC |
