Remove/install cover of brake pedal module - AR29.10-P-0330MCC

MODEL 451.3/4

Illustrated on model 451.4

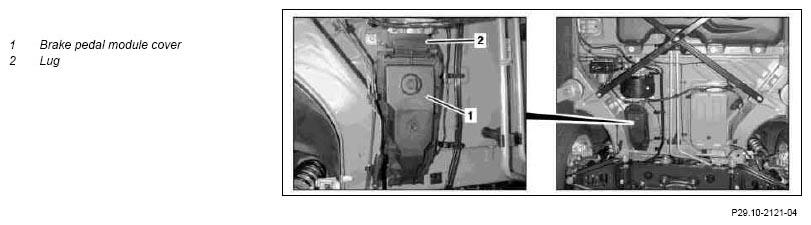

Fig 1: Identifying Brake Pedal Module Cover And Lug

G07275772

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle with lifting platform and remove underfloor paneling	Rechargeable drill / screwdriver http://gotis.aftersales.mercedes-benz.com
2	Pull down lug (2) on cover of brake pedal module (1) and remove cover of brake pedal module (1)
3	Clean contact surface of the brake pedal module cover (1) at the pedal assembly	Replace brake pedal module cover (1).
4	Install in the reverse order
