Rear Seat Outer Belt Assembly: Removal

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
2. REMOVE NO. 1 REAR SEAT LEG COVER (for RH Side)  (See REMOVAL )
3. REMOVE NO. 1 REAR SEAT LEG COVER (for LH Side)  (See REMOVAL )
4. REMOVE NO. 2 REAR SEAT LEG COVER (for LH Side)  (See REMOVAL )
5. REMOVE REAR SEAT ASSEMBLY RH  (See REMOVAL )
6. REMOVE REAR SEAT ASSEMBLY LH  (See REMOVAL )
7. REMOVE REAR DOOR SCUFF PLATE  (See REMOVAL )
8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
   1. Remove the rear door opening trim weatherstrip to the extent that the deck trim side panel and roof side inner garnish can be removed.
      Fig 1: Identifying Rear Door Opening Trim Weatherstrip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
10. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REMOVAL )
11. REMOVE DECK TRIM SIDE PANEL ASSEMBLY
    1. Remove the belt of the rear seat outer belt from the rear seat shoulder belt hanger.
       Fig 2: Locating Rear Seat Shoulder Belt Hanger

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the clip and remove the rear seat outer belt anchor plate.
       Fig 3: Locating Rear Seat Outer Belt Anchor Plate

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the screw.
    5. Disengage the 3 clips and the 7 claws and remove the deck trim side panel.

       HINT:

       When removing the deck trim side panel assembly LH, disconnect the room light connector and remove the deck trim side panel.

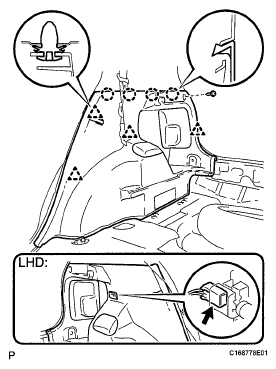

       Fig 4: Locating Clips And Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR SEAT SHOULDER BELT HANGER
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the rear seat shoulder belt hanger.
    Fig 5: Removing Rear Seat Shoulder Belt Hanger
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE ROOF SIDE INNER GARNISH  (See REMOVAL )
14. REMOVE REAR SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt and the through anchor.
       Fig 6: Locating Anchor Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, the 2 hooks and the retractor.
       Fig 7: Locating Hooks And Retractor With Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE SEAT BELT HOLE SEAL
    1. Disengage the 2 claws and remove the seat belt hole seal.
       Fig 8: Identifying Seat Belt Hole Seal

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
