Parking Brake Cable ASSY No.3: Replacement

HINT:

See COMPONENTS

For parking brake cable assy No.2, follow the same procedures as for the RH.

1. REMOVE CONSOLE BOX ASSY REAR (See  REPLACEMENT  )
2. LOOSEN WIRE ADJUSTING NUT NO.1
   1. Loosen the wire adjusting nut No.1.
3. REMOVE FLOOR PANEL BRACE FRONT
   1. Remove the 2 bolts and the floor panel brace front.
4. REMOVE EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
5. REMOVE FRONT FLOOR HEAT INSULATOR NO.2
   1. Remove the 2 bolts and the front floor heat insulator No.2.
6. SEPARATE PARKING BRAKE CABLE ASSY NO.3
   1. Remove the 4 bolts and disconnect the parking brake cable assy No.3 from the body.
   2. Disconnect the parking brake cable assy No.3 from the parking brake equalizer, and remove the parking brake cable assy No.3.
7. REMOVE REAR WHEEL
8. REMOVE REAR BRAKE DRUM SUB-ASSY (See  OVERHAUL  )
9. REMOVE FRONT BRAKE SHOE (See  OVERHAUL  )
10. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH (See  OVERHAUL  )
11. REMOVE REAR BRAKE SHOE (See  OVERHAUL  )
12. REMOVE REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSY (See  OVERHAUL  )
13. REMOVE PARKING BRAKE CABLE ASSY NO.3
    1. Remove the bolt, and disconnect the parking brake cable assy No.3 from the backing plate.
       Fig 1: Identifying Brake Shoe

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL PARKING BRAKE CABLE ASSY N0.3
    1. Connect the parking brake cable assy No.3 to the parking brake cable equalizer.
    2. Install the parking brake cable assy No.3 with the 4 bolts.

       Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

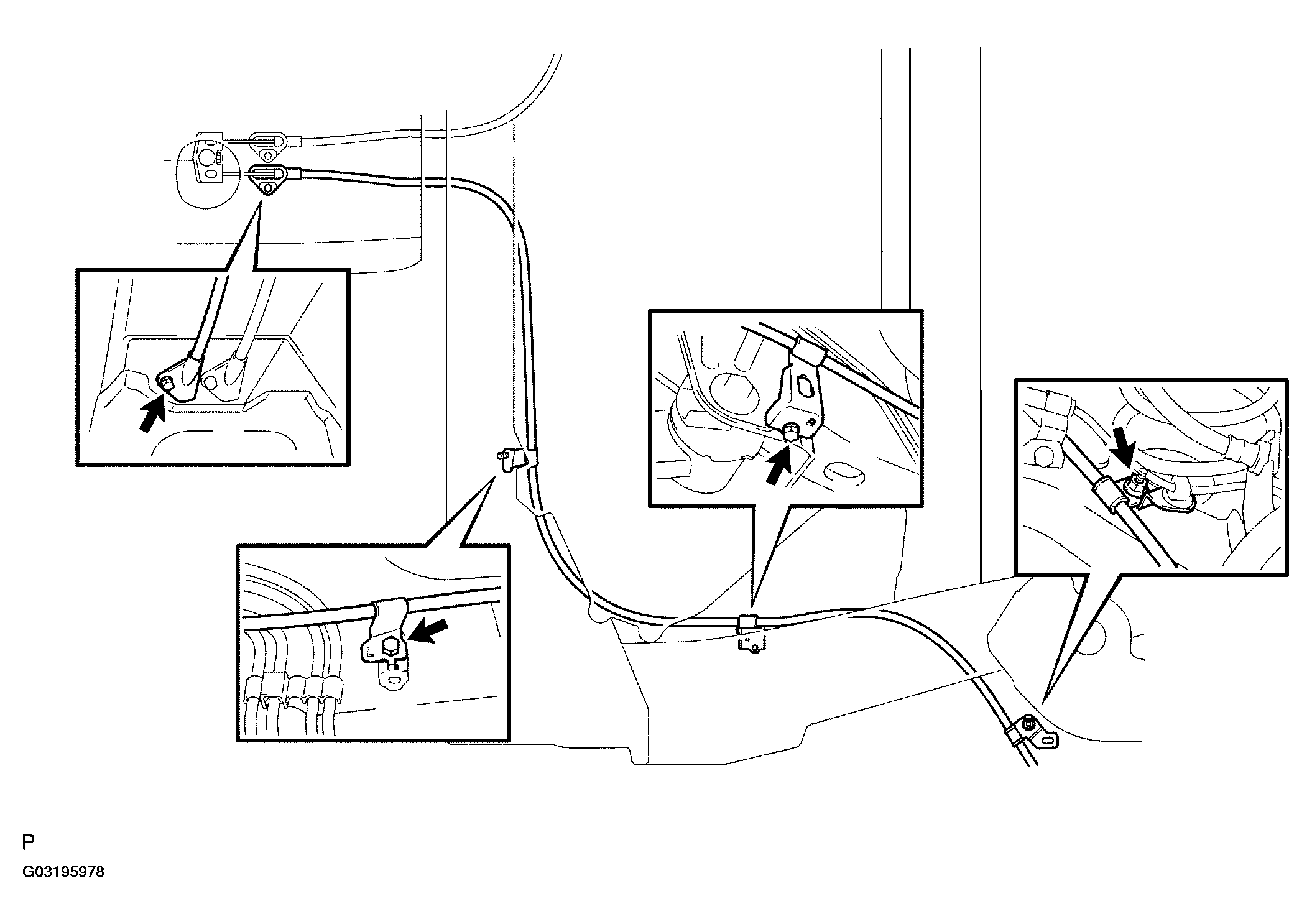

       Fig 2: Installing Parking Brake Cable

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. APPLICATION HIGH TEMPERATURE GREASE (See  OVERHAUL  )
16. INSTALL REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSY (See  OVERHAUL  )
17. INSTALL REAR BRAKE SHOE (See  OVERHAUL  )
18. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH (See  OVERHAUL  )
19. INSTALL FRONT BRAKE SHOE (See  OVERHAUL  )

    SST 09718-00010

20. CHECK REAR DRUM BRAKE INSTALLATION (See  OVERHAUL  )
21. INSTALL REAR BRAKE DRUM SUB-ASSY (See  OVERHAUL  )
22. ADJUST REAR DRUM BRAKE SHOE CLEARANCE (See  OVERHAUL  )
23. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

24. TEMPORARILY TIGHTEN WIRE ADJUSTING NUT NO.1
    1. Install the wire adjusting nut No.1.
25. INSTALL FRONT FLOOR HEAT INSULATOR NO.2
    1. Install the front floor heat insulator No.2 with the 2 bolts.

       Torque: 5.5 N.m (55 kgf.cm, 48 in.lbf)

26. INSTALL EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
27. INSTALL FLOOR PANEL BRACE FRONT
    1. Install the floor panel brace front with the 2 bolts.

       Torque: 20 N.m (204 kgf.cm, 18 ft.lbf)

28. CHECK PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT   )
29. ADJUST PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT   )
30. INSTALL CONSOLE BOX ASSY REAR
31. CHECK FOR EXHAUST GAS LEAKS
