Parking Brake Cable ASSY No.3: Components

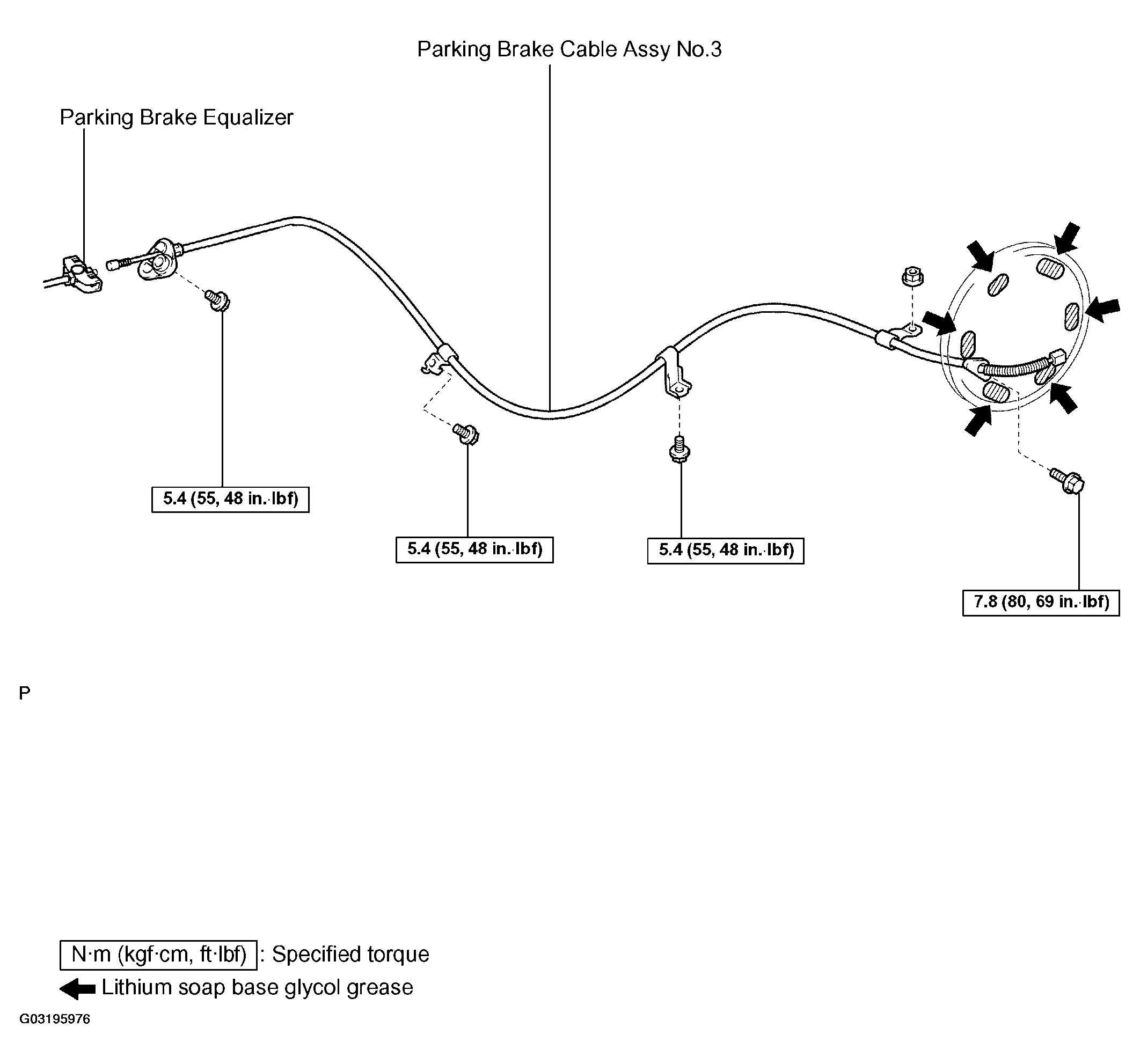

Fig 1: Identifying Parking Brake

G03195976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
