Heater Inlet Hose Replacement (LNF)

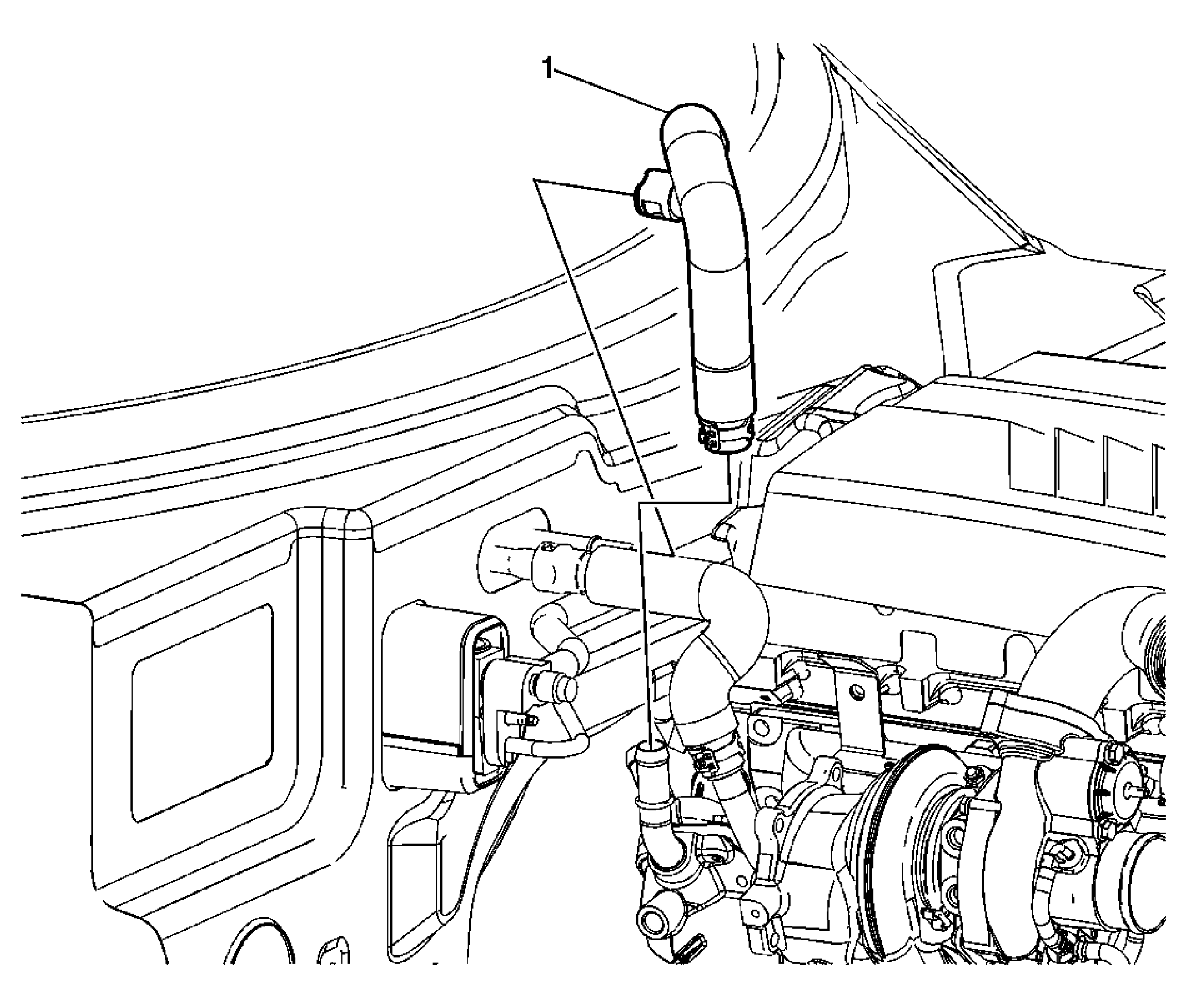

Fig 1: Identifying Heater Inlet Hose (LNF)
GM1697776Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (Static Fill-LNF) .
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (SKY) or Air Inlet Grille Panel Replacement (Solstice) .
1 Heater Inlet Hose Assembly
Procedure:
Using J 38185  reposition the heater hose clamp. See Special Tools .
