Air Inlet Grille Panel Replacement (SKY)

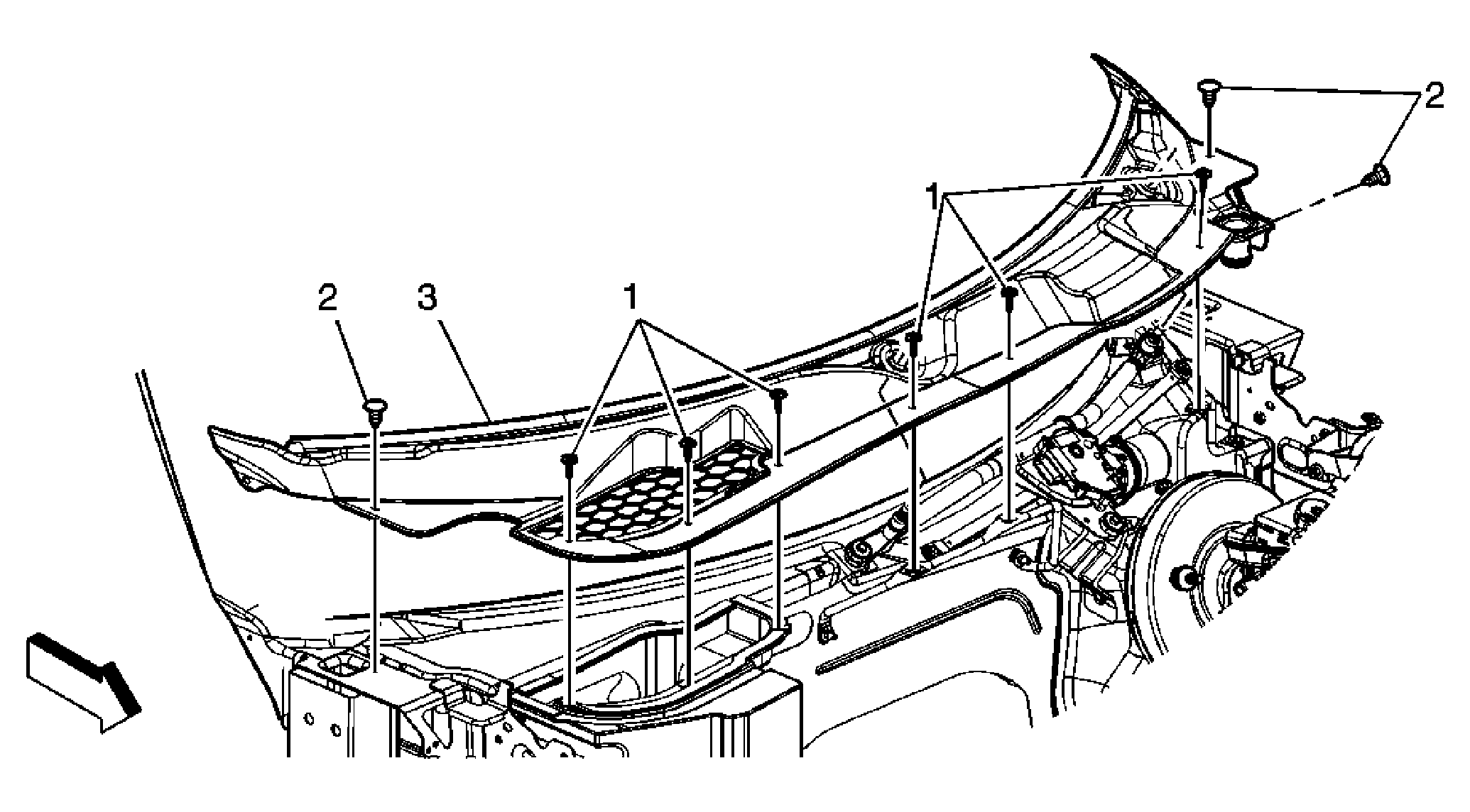

Fig 1: Identifying Air Inlet Grille Panel (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
1	Air Inlet Grille Retainer (Qty: 6)
2	Air Inlet Grille Retainer (Qty: 4) Tip:  There are two retainers at each end of the air inlet grille panel.
3	Air Inlet Grille Panel Tip:  Locate the rear tabs under the lower edge of the windshield prior to securing the retainers.
