Air Inlet Grille Panel Replacement (Solstice)

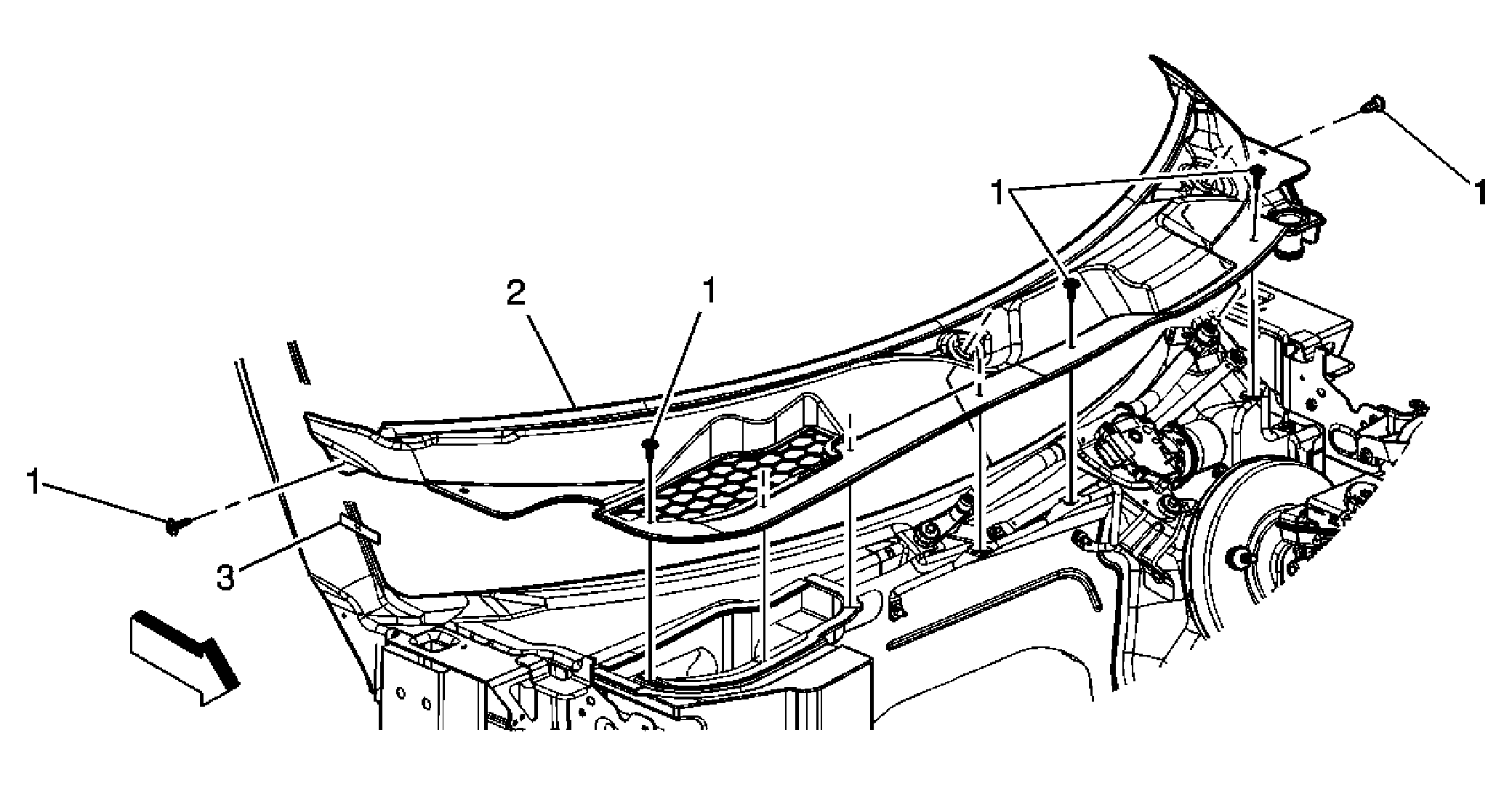

Fig 1: Identifying Air Inlet Grille Panel (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
1	Air Inlet Grille Retainer (Qty: 10)
2	Air Inlet Grille
3	Washer Pump Hose Tip:  Disconnect at the outer edge of the air inlet grille panel.
