Hood Replacement

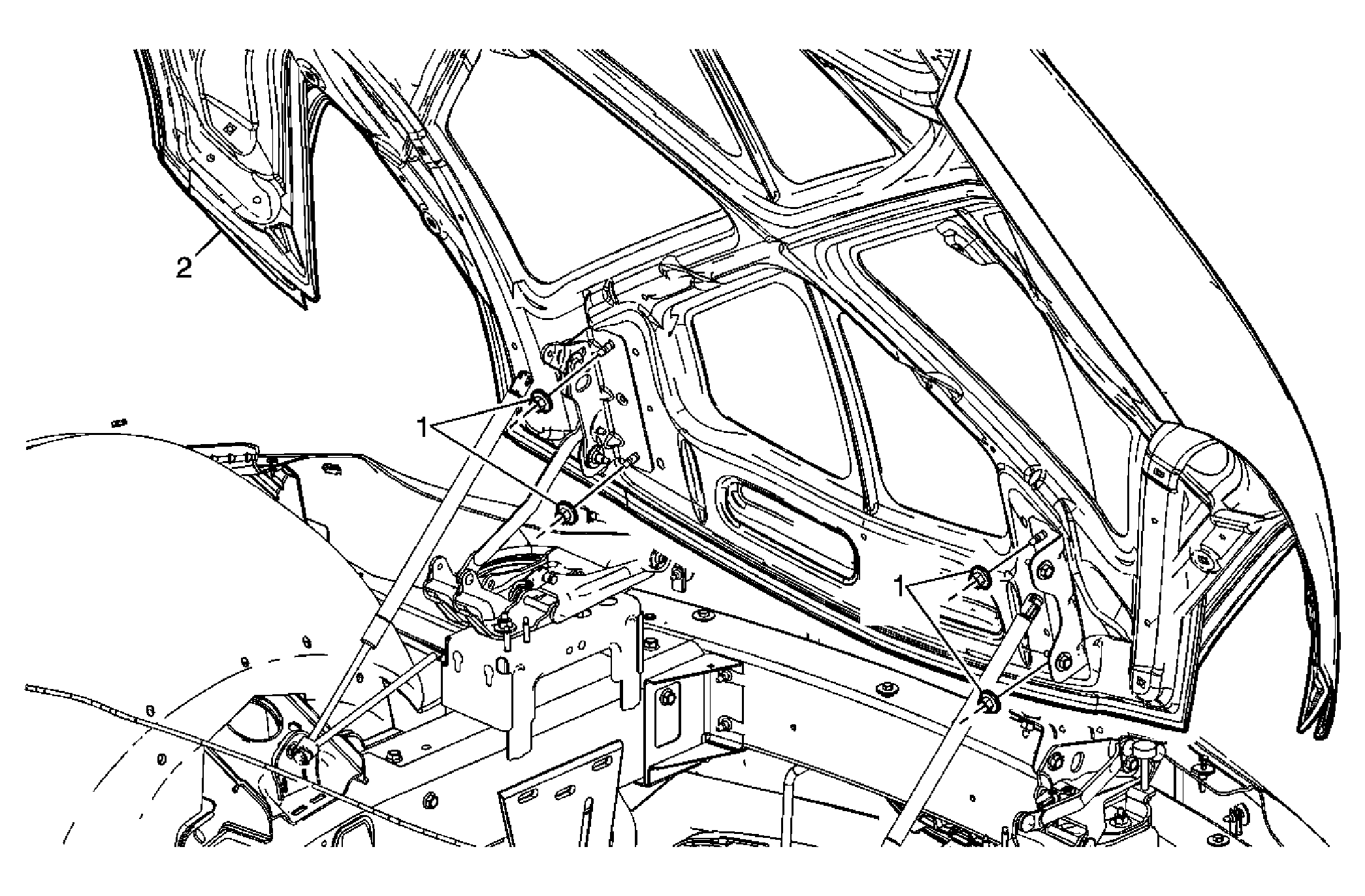

Fig 1: Identifying Hood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamps. Refer to Headlamp Replacement (Solstice) or Headlamp Replacement (SKY) .
1	Hood Hinge Nuts (Qty: 4) Tip: Disconnect the wiring harness from the hood on both sides. Mark the hood for proper alignment for re-installing. CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (19 lb ft)
2	Hood WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Callout

Component Name

Preliminary Procedure:
Remove the headlamps. Refer to Headlamp Replacement (Solstice) or Headlamp Replacement (SKY) .

Hood Hinge Nuts (Qty: 4)
Tip:

Disconnect the wiring harness from the hood on both sides.
Mark the hood for proper alignment for re-installing.

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (19 lb ft)

Hood

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
