Headlamp Replacement (SKY)

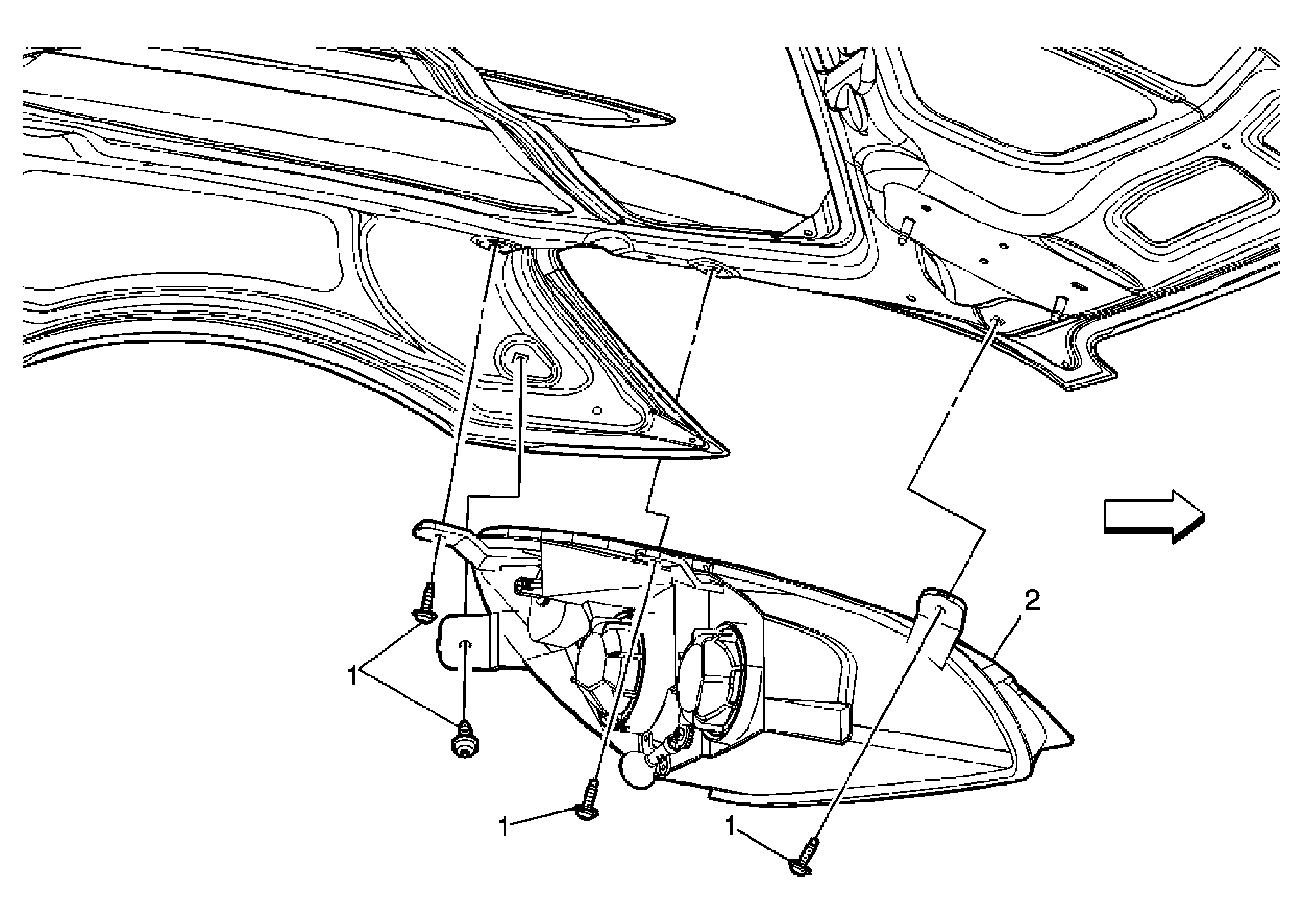

Fig 1: Identifying Headlamp (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the hood. Release the connector positive assurance (CPA) connector at the headlamp connector. Disconnect the electrical harness from the headlamp assembly prior to removal.
1	Headlamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tip: Hold the lamp assembly to the hood when removing the screws. Tighten: 9 N.m (80 lb in)
2	Headlamp Assembly Tip: Adjust the headlamps after servicing the headlamp assembly. Refer to Headlamp Aiming (SKY) .

Callout

Component Name

Preliminary Procedures

Open the hood.
Release the connector positive assurance (CPA) connector at the headlamp connector.
Disconnect the electrical harness from the headlamp assembly prior to removal.

Headlamp Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tip: Hold the lamp assembly to the hood when removing the screws.

Tighten: 9 N.m (80 lb in)

Headlamp Assembly
Tip: Adjust the headlamps after servicing the headlamp assembly. Refer to Headlamp Aiming (SKY) .
