Headlamp Replacement (Solstice)

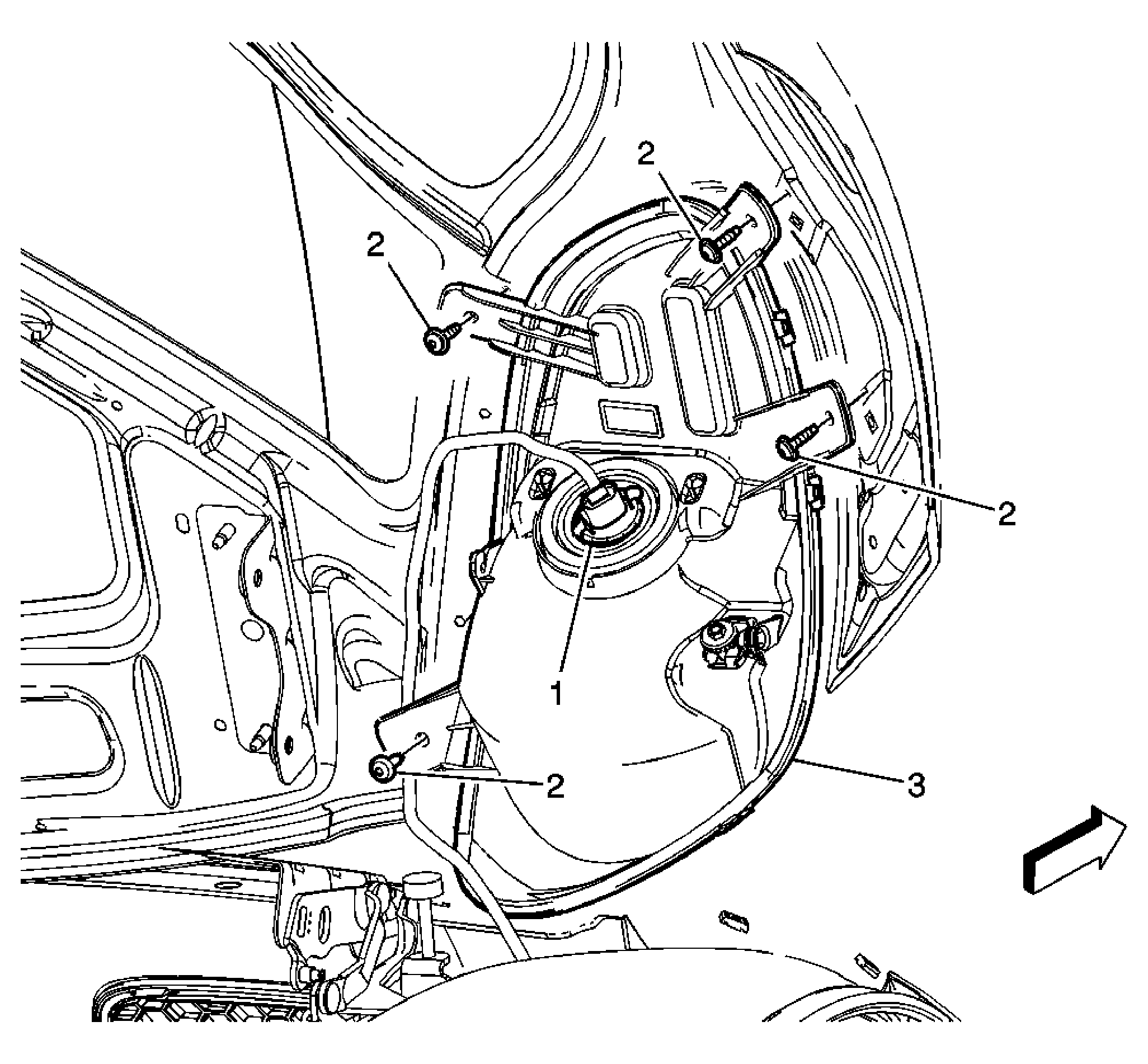

Fig 1: View Of Headlamp, Socket & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the hood. Release the connector position assurance (CPA) connector at the headlamp bulb socket. Disconnect the electrical harness from the left side headlamp prior to removal.
1	Headlamp Assembly Socket Tip: Disengage the bulb socket from the headlamp assembly by rotating one quarter turn counterclockwise.
2	Headlamp Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Tip: Hold the lamp assembly to the hood when removing the screws. Tighten: 8 N.m (71 lb in)
3	Headlamp Assembly Tip: On the left front headlamp assembly, disconnect the electrical harness from the rear of the headlamp composite.
