Front Floor Console Front Cover Replacement

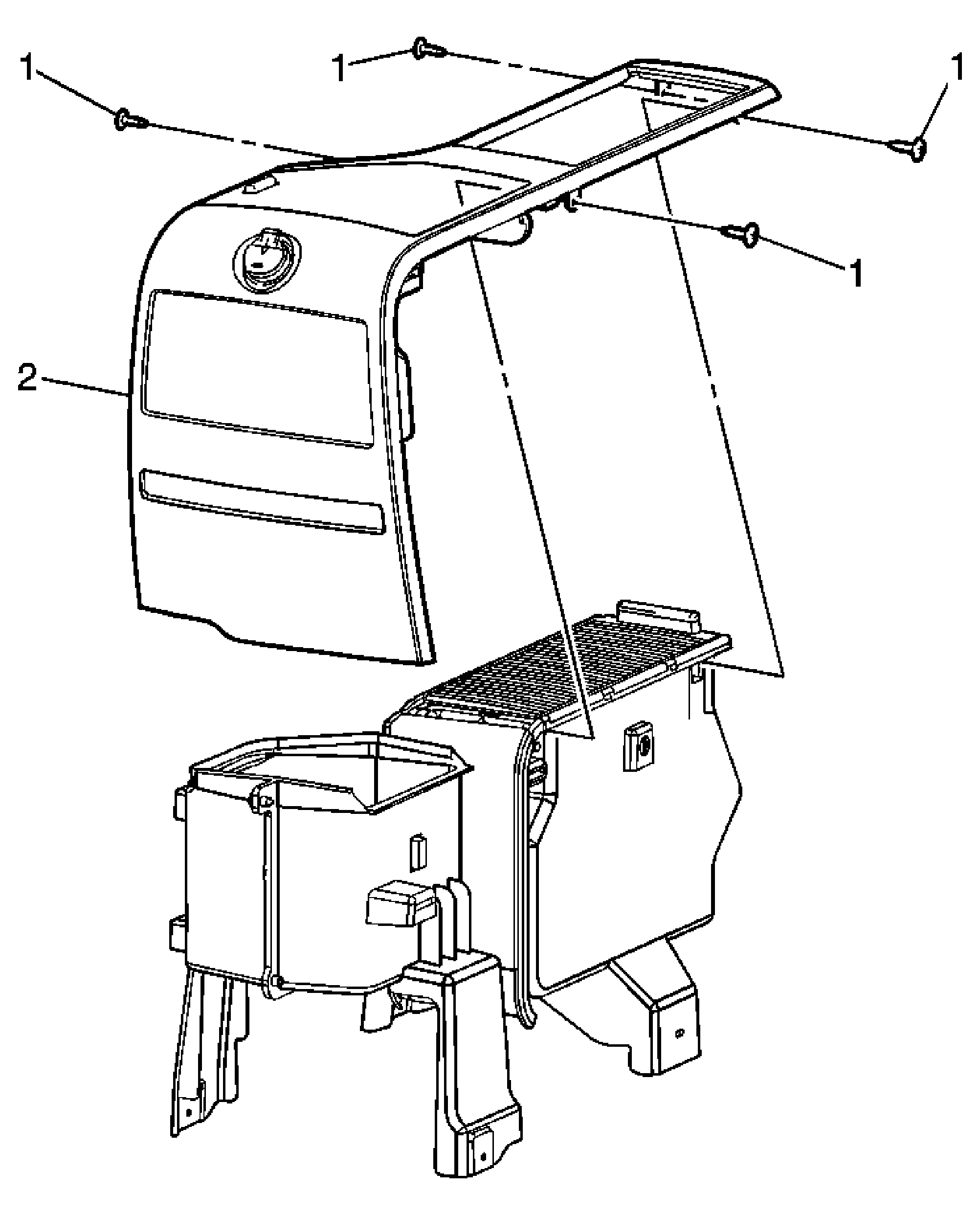

Fig 1: Front Floor Console Front Cover And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front floor console. Refer to Console Replacement - Front Floor . Remove the front floor console cup holder assembly. Refer to Cup Holder Replacement - Front Floor Console - Rear . Remove the front floor console right trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right . Remove the front floor console left trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left .
1	Front Floor Console Cover Assembly Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Front Floor Console Cover Assembly

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front floor console. Refer to Console Replacement - Front Floor .
Remove the front floor console cup holder assembly. Refer to Cup Holder Replacement - Front Floor Console - Rear .
Remove the front floor console right trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right .
Remove the front floor console left trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left .

Front Floor Console Cover Assembly Screws (Qty: 2)

Tighten: 2 N.m (18 lb in)

Front Floor Console Cover Assembly
