Cup Holder Replacement - Front Floor Console - Rear

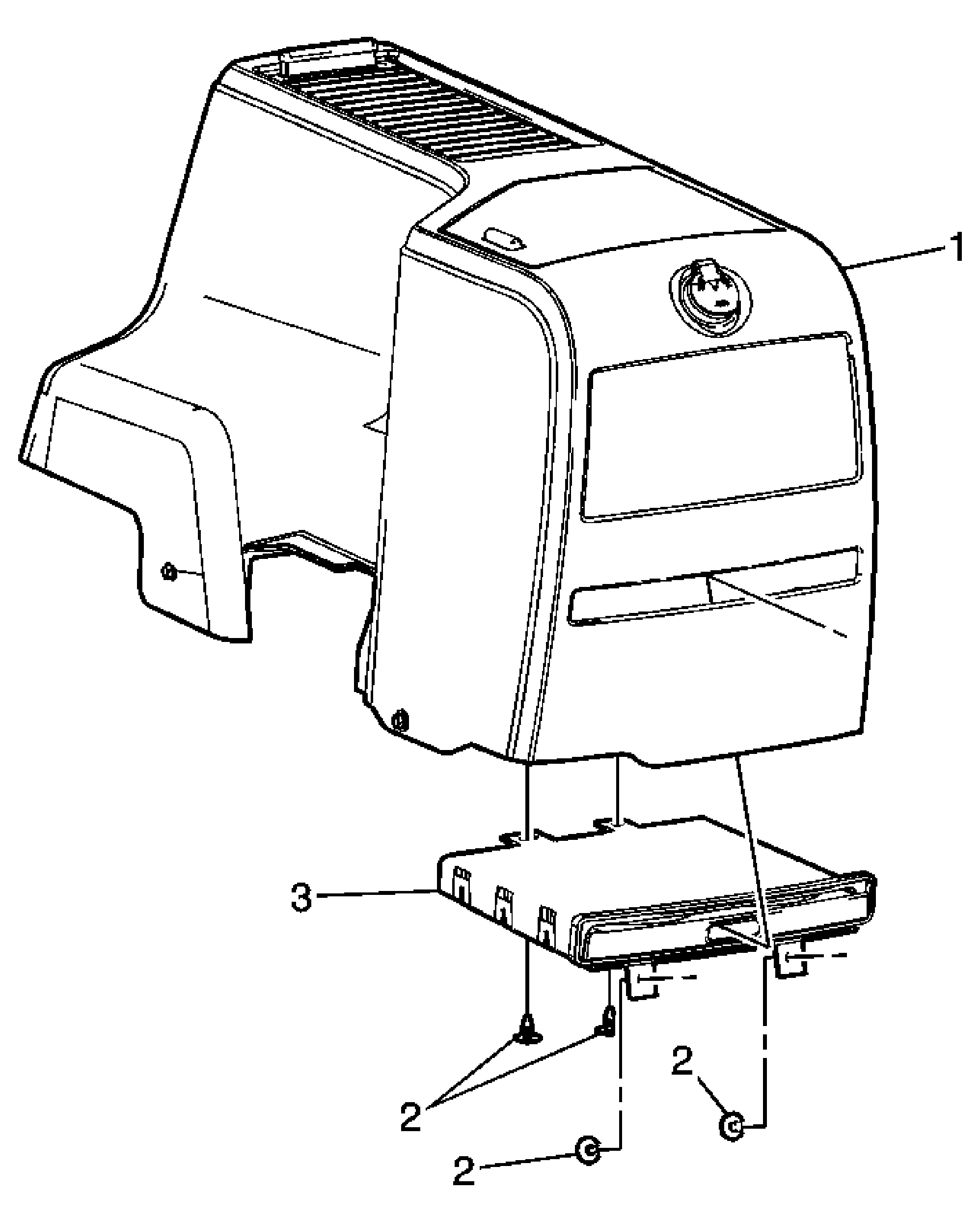

Fig 1: Front Floor Console Rear Cup Holder And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console. Refer to Console Replacement - Front Floor .
1	Front Floor Console Cupholder Screws (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Front Floor Console Cupholder Assembly
