Front Floor Console Side Trim Panel Replacement - Left

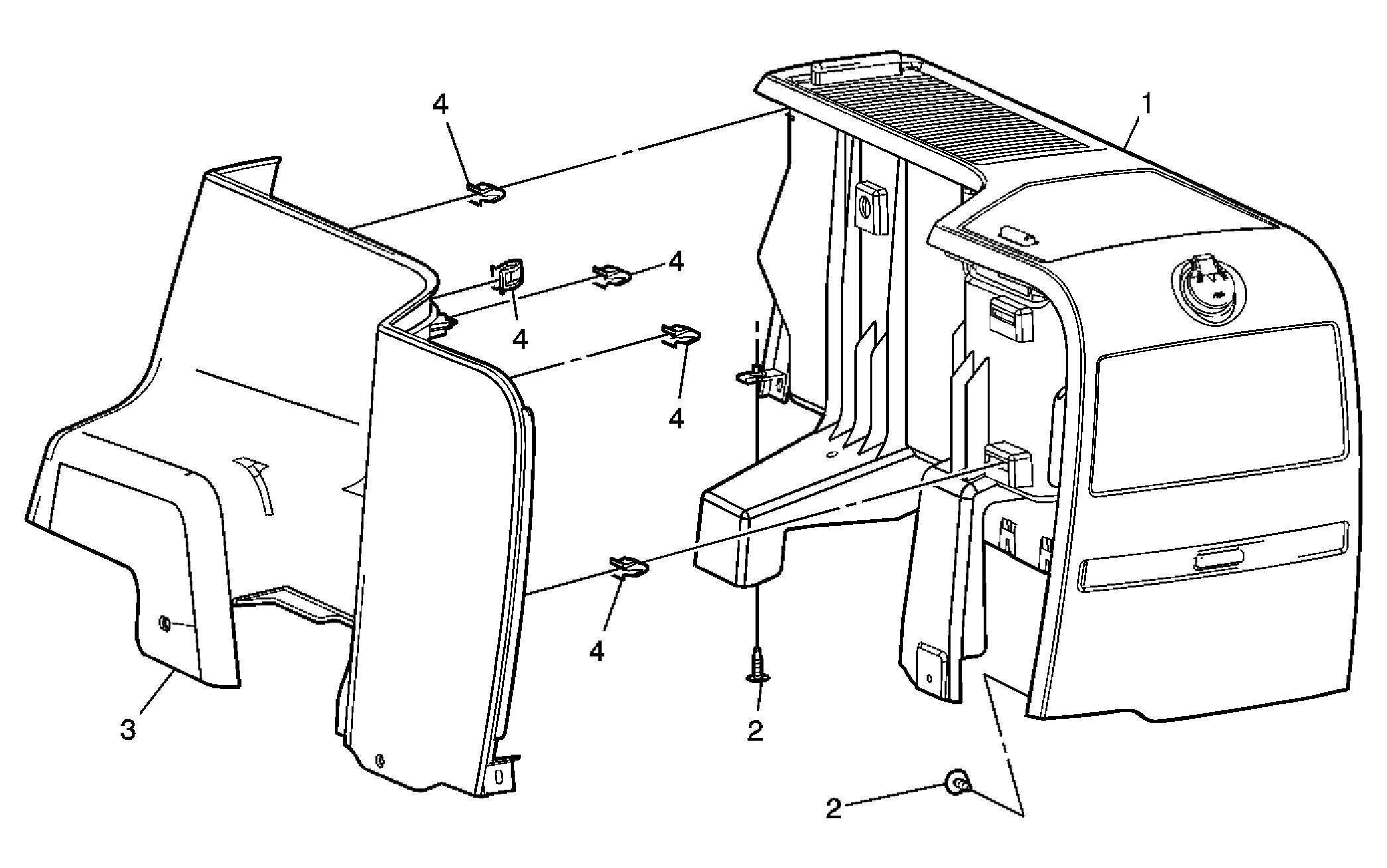

Fig 1: Front Floor Console Side Trim Panel And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Floor Console Assembly Refer to Console Replacement - Front Floor .
2	Front Floor Console Left Trim Panel Screws Tighten: 2 N.m (18 lb in)
3	Front Floor Console Left Trim Panel Assembly
4	Retainer Clips (Qty: 5)
