Front Floor Console Compartment Replacement

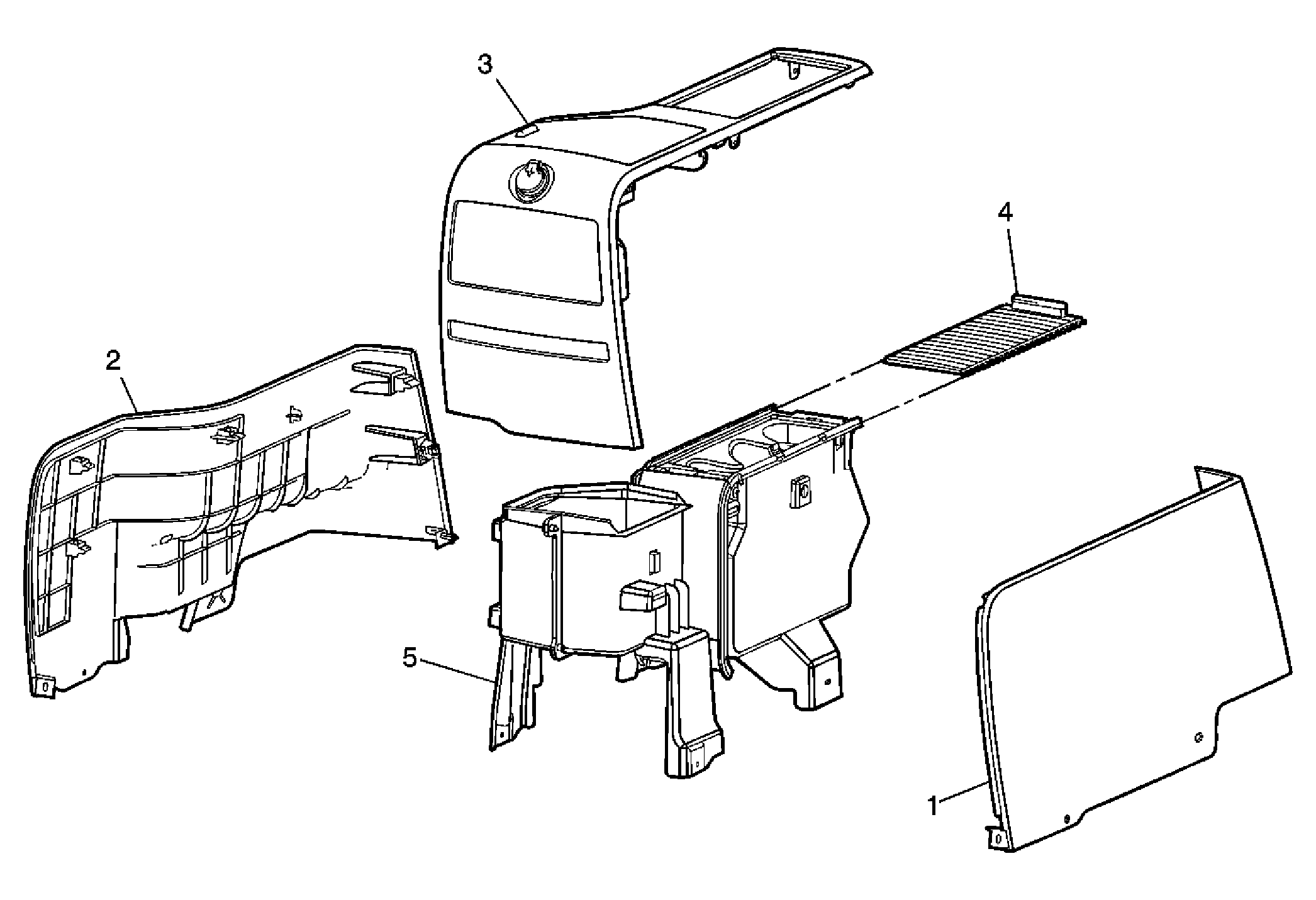

Fig 1: Front Floor Console Compartment And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the Front Floor Console. Refer to Console Replacement - Front Floor .
1	Front Floor Console Right Trim Panel. Refer to Front Floor Console Side Trim Panel Replacement - Right .
2	Front Floor Console Left Trim Panel. Refer to Front Floor Console Side Trim Panel Replacement - Left .
3	Front Floor Console Cover Assembly. Refer to Front Floor Console Front Cover Replacement .
4	Front Floor Console Front Compartment Door Assembly. Refer to Front Floor Console Front Compartment Door Replacement .
5	Front Floor Console Compartment Assembly.
