Carrier Cover, Accessory Trim Panel Lower Extension Replacement - Instrument Panel

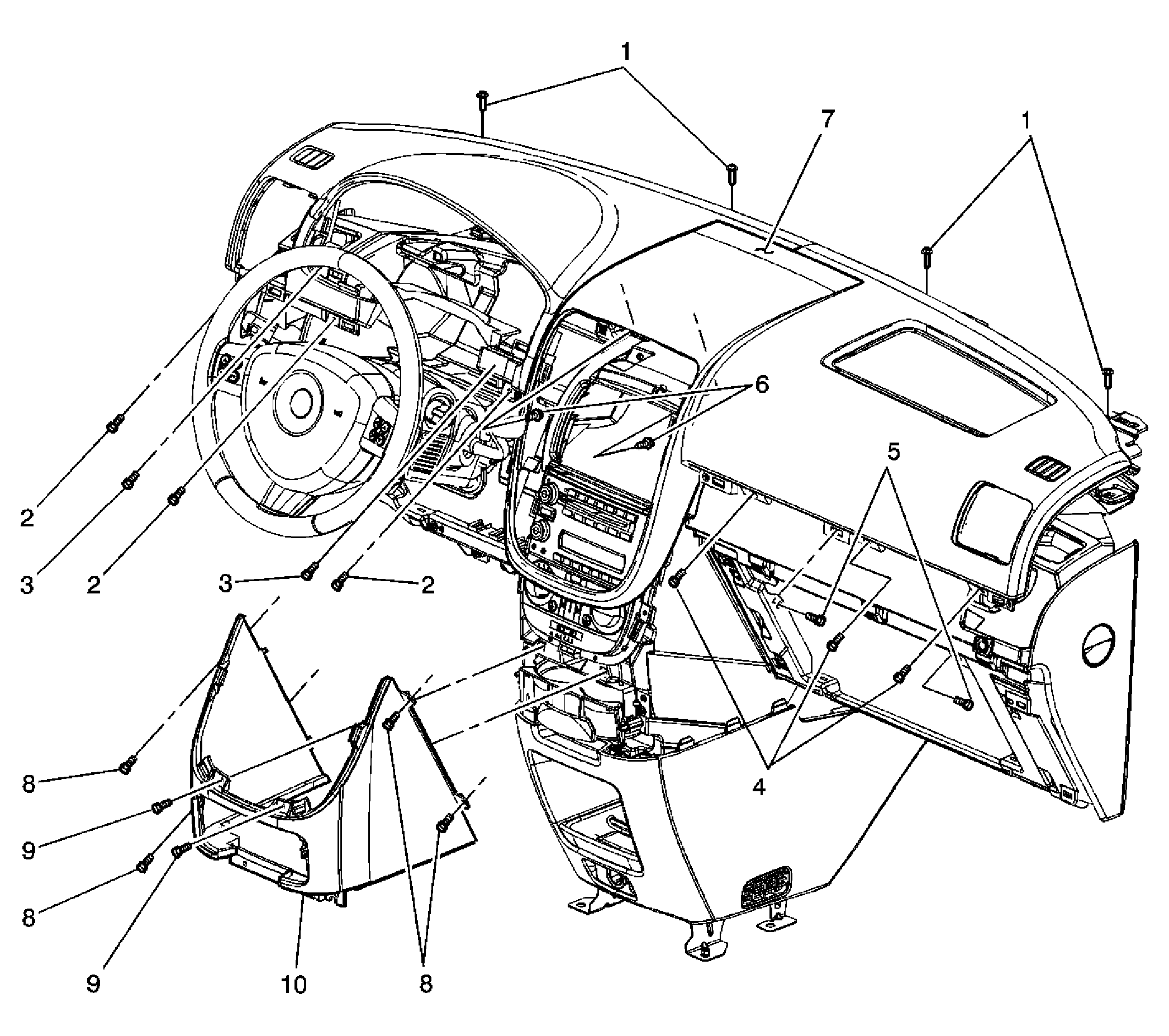

Fig 1: Identifying Instrument Panel Carrier Cover & Accessory Trim Panel Lower Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Instrument Panel (I/P) Carrier Trim Cover Replacement Preliminary Procedures Disable the SIR. Refer to SIR Disabling and Enabling and SIR Disabling and Enabling . Remove the instrument panel (I/P) insulators. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P compartment assembly. Refer to Compartment Assembly, Door, Striker, Latch Replacement - Instrument Panel . Remove the I/P driver knee bolster assembly. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P accessory trim plate. Refer to Accessory Trim Plate, Driver Information Display Switch Replacement - Instrument Panel . Remove the center I/P-A/C outlets. Refer to Instrument Panel Air Outlet Ducts Replacement . Remove the I/P cluster trim plate. Refer to Cluster, Cluster Trim Plate Replacement - Instrument Panel . Remove the I/P lower trim molding. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P steering column opening moldings. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P upper trim pad. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel .
1	I/P Carrier Trim Cover Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
2	I/P Carrier Trim Cover Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	I/P Carrier Trim Cover Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	I/P Carrier Trim Cover Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
5	I/P Carrier Trim Cover Screw (Qty: 2) Tip: The 2 screws go up into the carrier cover, and are located on each side of the passenger air bag module, and must be removed from inside of the I/P compartment opening. Tighten: 2 N.m (18 lb in)
6	I/P Carrier Trim Cover Screw (Qty: 2) Tip: The 2 screws go up into the carrier cover and can be removed from the center A/C outlet opening. Tighten: 2 N.m (18 lb in)
7	I/P Carrier Trim Cover Assembly
I/P Lower Extension Accessory Trim Panel Replacement Preliminary Procedures Disable the SIR. Refer to SIR Disabling and Enabling and SIR Disabling and Enabling . Remove the I/P insulators. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P compartment assembly. Refer to Compartment Assembly, Door, Striker, Latch Replacement - Instrument Panel . Remove the I/P driver knee bolster assembly. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P accessory trim plate. Refer to Accessory Trim Plate, Driver Information Display Switch Replacement - Instrument Panel . Remove the I/P A/C outlets. Refer to Instrument Panel Air Outlet Ducts Replacement . Remove the I/P cluster trim plate. Refer to Cluster, Cluster Trim Plate Replacement - Instrument Panel . Remove the I/P lower trim molding. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P steering column opening moldings. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel . Remove the I/P upper trim pad. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel . Remove the I/P cupholder. Refer to Cupholder Replacement .
1	I/P Carrier Trim Cover Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
2	I/P Carrier Trim Cover Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	I/P Carrier Trim Cover Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	I/P Carrier Trim Cover Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
5	I/P Carrier Trim Cover Screw (Qty: 2) Tip: The 2 screws go up into the carrier cover, and are located on each side of the passenger air bag module, and must be removed from inside of the I/P compartment opening. Tighten: 2 N.m (18 lb in)
6	I/P Carrier Trim Cover Screw (Qty: 2) Tip: The 2 screws go up into the carrier cover and can be removed from the center A/C outlet opening. Tighten: 2 N.m (18 lb in)
7	I/P Carrier Trim Cover Assembly
8	I/P Lower Extension Accessory Trim Panel Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
9	I/P Lower Extension Accessory Trim Panel Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
10	I/P Lower Extension Accessory Trim Panel Assembly
