Cluster, Cluster Trim Plate Replacement - Instrument Panel

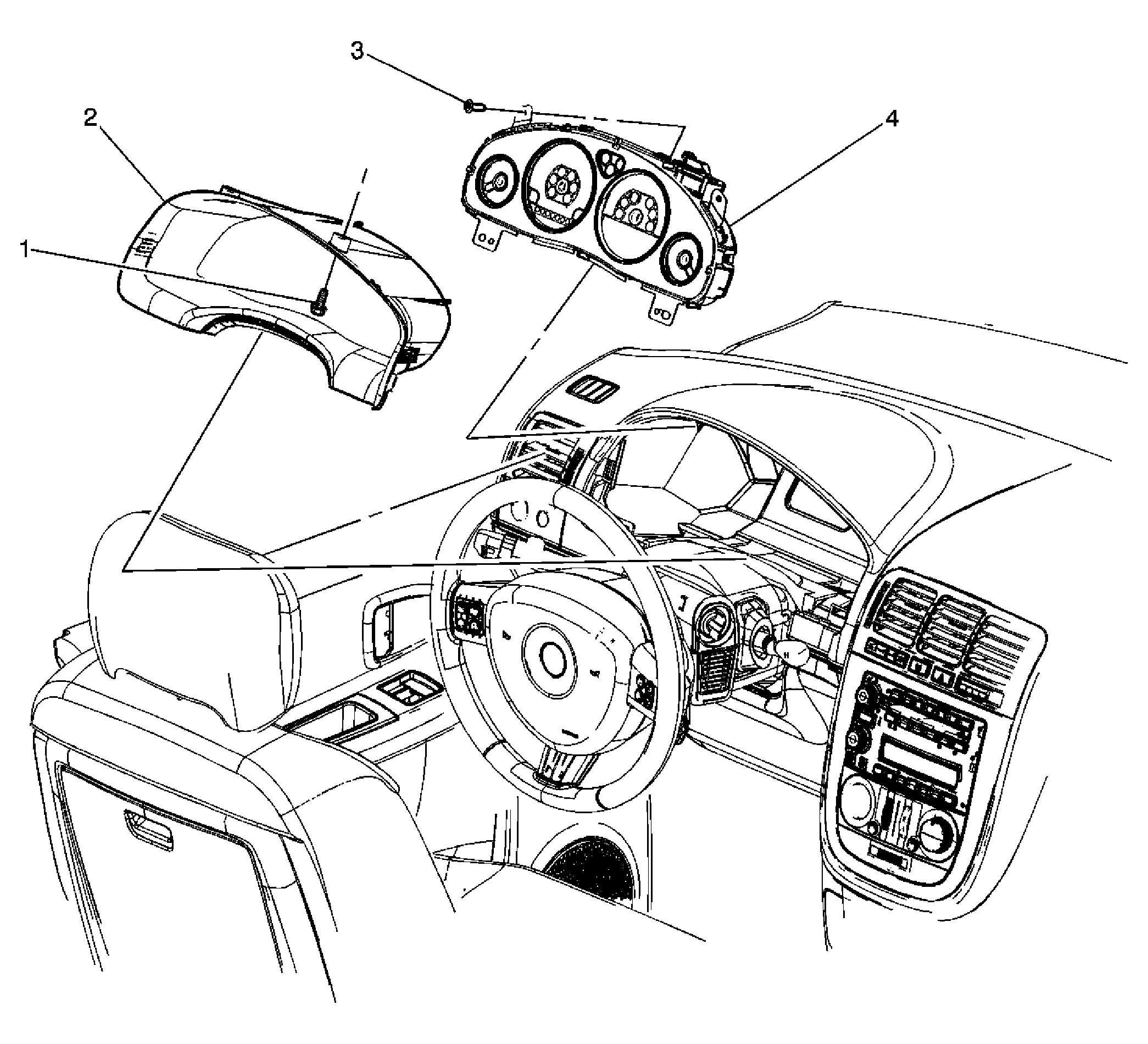

Fig 1: Identifying Instrument Panel Cluster & Cluster Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Instrument Panel (I/P) Cluster Trim Plate Replacement
1	NOTE: Refer to Fastener Notice . Screw, I/P Cluster Trim Plate (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Plate Assembly, I/P Cluster Trim
I/P Cluster Assembly Replacement
1	Screw, I/P Cluster Trim Plate (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Plate Assembly, I/P Cluster Trim
3	Screw, I/P Cluster (Qty: 4) Tighten: 2 N.m (18 lb in)
4	Cluster Assembly, I/P Refer to Control Module References for programming and setup information.
