Front Side Door Window Regulator Replacement

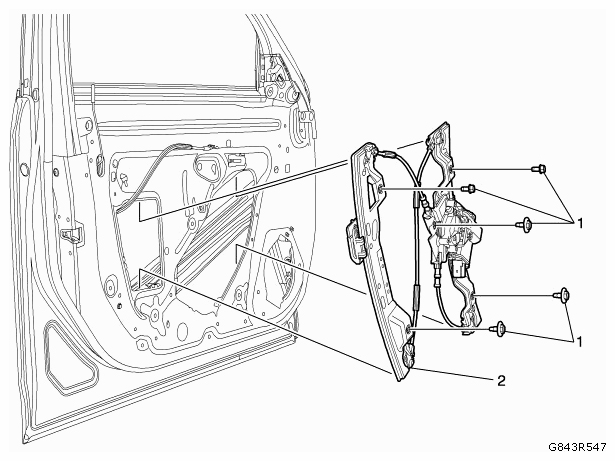

Fig 1: Identifying Front Side Door Window Regulator And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT . Remove the front side door window. Refer to FRONT SIDE DOOR WINDOW REPLACEMENT .
1	Front Side Door Window Regulator Fastener (Qty: 5) Refer to FASTENER CAUTION . NOTE: Use new fasteners and screw locking. Tighten  9 Nm (80 lb in)
2	Front Side Door Window Regulator Procedure  Disconnect the front side door window regulator electrical connector.
