Front Side Door Window Replacement

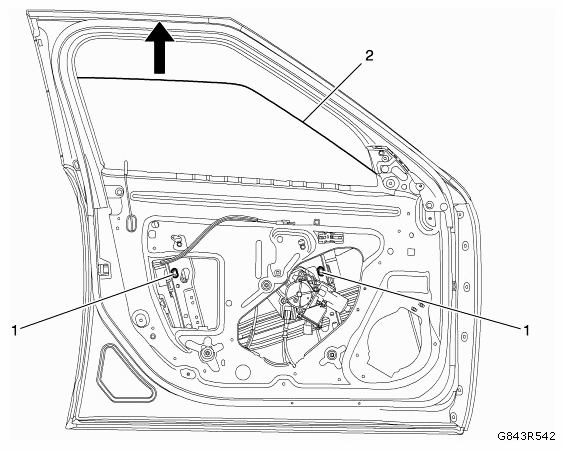

Fig 1: Removing Front Side Door Window

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. WARNING: To avoid paint damage, protect the area surrounding the part which you are removing or installing. Preliminary Procedure Remove the front side door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT . Remove the front side door inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REPLACEMENT . Remove the Front Side Door Window Outer Sealing Strip. Refer to FRONT SIDE DOOR WINDOW OUTER SEALING STRIP REPLACEMENT .
1	Front Side Door Window Guide Retainer Clip (Qty: 2) Procedure Position the window approximately half way down in the door. Release the front door water deflector to access window guide retainer. Push inward on the window guide retainer clip, lift upward on the window until it releases from the retaining clip on the rear and front side. Tilt the window downward in the front, pull up on the back of the window and pull it out from the frame.
2	Front Side Door Window NOTE: Inspect the window for proper operation before installing the trim panel.
