Front Side Door Water Deflector Replacement

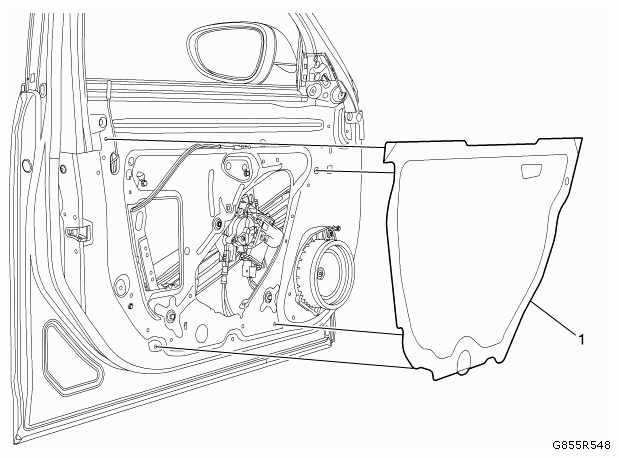

Fig 1: Identifying Front Side Door Water Deflector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front side door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .
1	Front Side Door Water Deflector Procedure  Remove bracket. Guide electrical connectors and door lock cable through the water deflector while removing it from the door.
