C-pillar upper trim panel, replace 4D

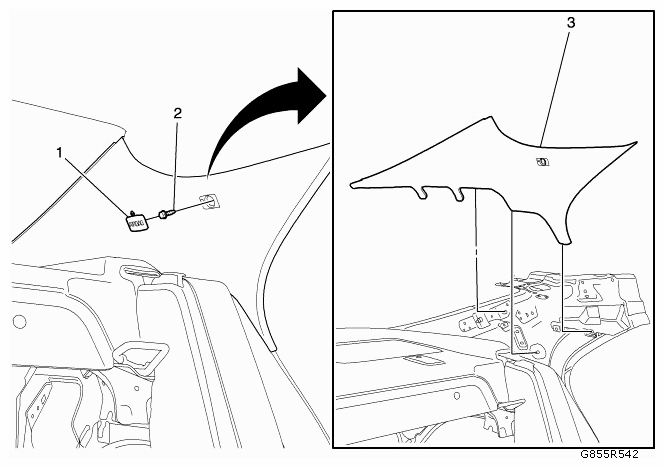

Fig 1: Identifying C-Pillar, Upper Trim Panel, Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear seat back cushion pad. Refer to REAR SEAT BACK CUSHION BOLSTER REPLACEMENT (NOT US, CA, MX) or REAR SEAT BACK CUSHION BOLSTER REPLACEMENT (US, CA, MX)
1	C-pillar, upper trim panel, cover NOTE: Use a small flat-bladed tool to release the retainer from the C-pillar's upper trim panel.
2	C-pillar, upper trim panel, fastener Refer to FASTENER CAUTION .
3	C-pillar upper trim panel
