Rear Seat Back Cushion Bolster Replacement (Not US, CA, MX)

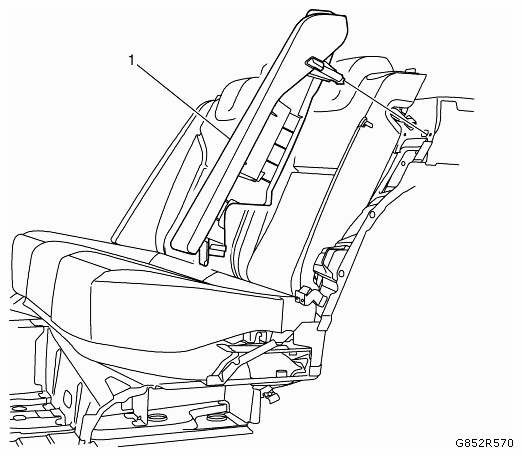

Fig 1: Identifying Rear Seat Back Cushion Bolster
G09438053Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Rear Seat Back Cushion Bolster
Refer to SIR WARNING .
Procedure
  1. Pull the upper seat back cushion bolster forward.
  2. Pull the seat back cushion bolster up.
  3. Remove rear seat back cushion bolster.
