Rear Seat Back Cushion Bolster Replacement (US, CA, MX)

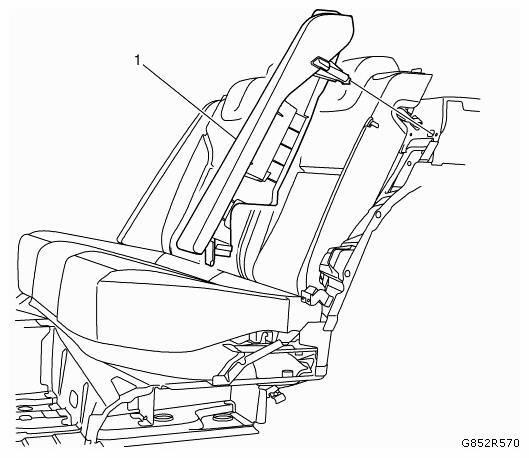

Fig 1: Identifying Rear Seat Back Cushion Bolster

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout

Component Name

1

Rear Seat Back Cushion Bolster Refer to SIR WARNING . Procedure  Disable the SIR system. Refer to SIR DISABLING AND ENABLING . Pull the upper seat back cushion bolster forward. Pull the seat back cushion bolster up. Disconnect the electrical connector. Remove rear seat back cushion bolster. Remove the rear seat side inflatable module. Refer to REAR SEAT BODY SIDE INFLATABLE RESTRAINT MODULE REPLACEMENT .
