Front Side Door Outside Handle Bracket Replacement

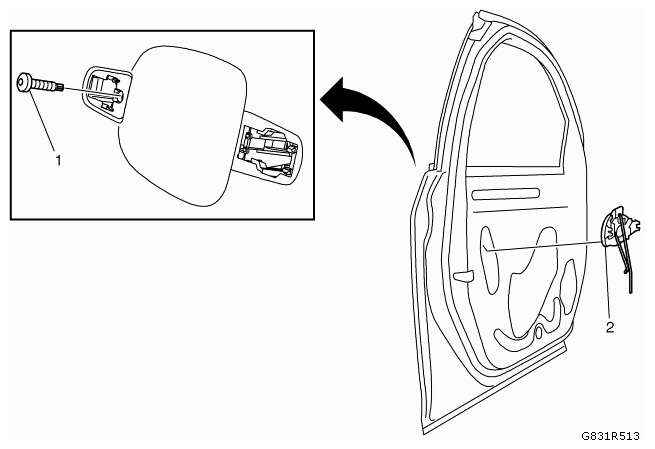

Fig 1: Identifying Front Side Door Outside Handle Bracket And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT . Remove the front side door lock cover. Refer to FRONT SIDE DOOR LOCK COVER REPLACEMENT . Remove the front side door outside handle. Refer to FRONT SIDE DOOR OUTSIDE HANDLE REPLACEMENT (BASE) .
1	Front Side Door Outside Handle Bracket Fastener
2	Front Side Door Outside Handle Bracket Procedure  Release front side door outside handle rod mechanism at shift linkage lever - clip. Release the front side door lock cylinder rod from the door lock. Transfer components as necessary.
