Front Side Door Lock Cover Replacement

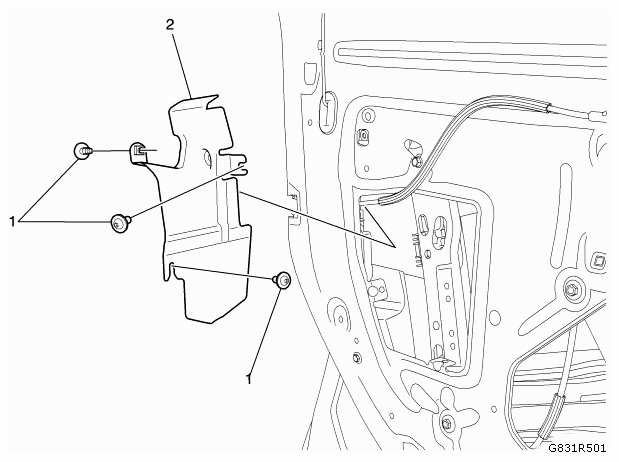

Fig 1: Identifying Front Side Door Lock Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT .
1	Front Side Door Lock Cover Fastener (Qty: 3) Refer to FASTENER CAUTION .
2	Front Side Door Lock Cover
