Plenum Water Deflector Replacement

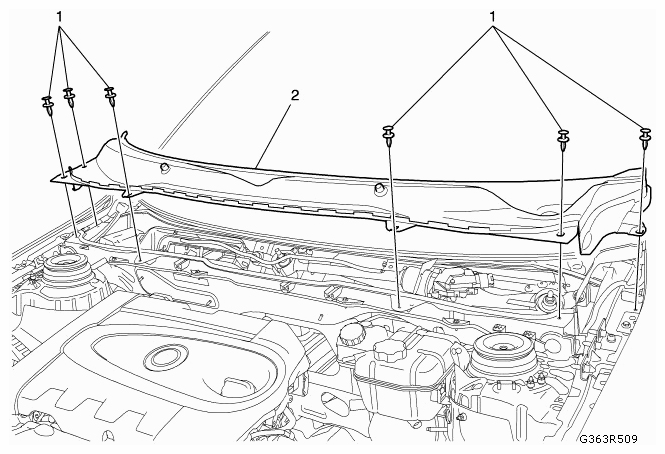

Fig 1: Identifying Plenum Water Deflector And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove both windshield wiper arm assemblies. Refer to WINDSHIELD WIPER ARM REPLACEMENT .
1	Plenum Water Deflector Retainer (Qty: 4) NOTE: Lift the center of the push pin. Then remove the lower portion from the grille panel.
2	Plenum Water Deflector Procedure Disconnect the hood rear weather-strip from the air inlet panel flange. Lift the front edge of the air inlet panel upward off the plenum edge far enough to clear the wiper motor pivot shafts. Disengage the washer hose from the bottom edge of the panel. Pull the grille forward to disengage the rear edge of the grille panel from the bottom of the windshield edge. Pull the air inlet grille panel from around both hood hinges. Angle the air inlet grille to clear the hood strut assembly. Transfer the windshield washer nozzles. Refer to WINDSHIELD WASHER NOZZLE REPLACEMENT .
