Windshield Washer Nozzle Replacement

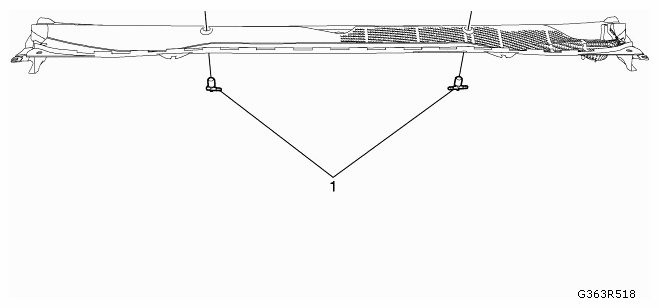

Fig 1: Identifying Windshield Washer Nozzle

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the air inlet grille panel assembly. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
1	Windshield Washer Nozzle (Qty: 2) NOTE: Depress the washer nozzle tab and push outward in order to remove the nozzle from the air inlet grille panel assembly.
